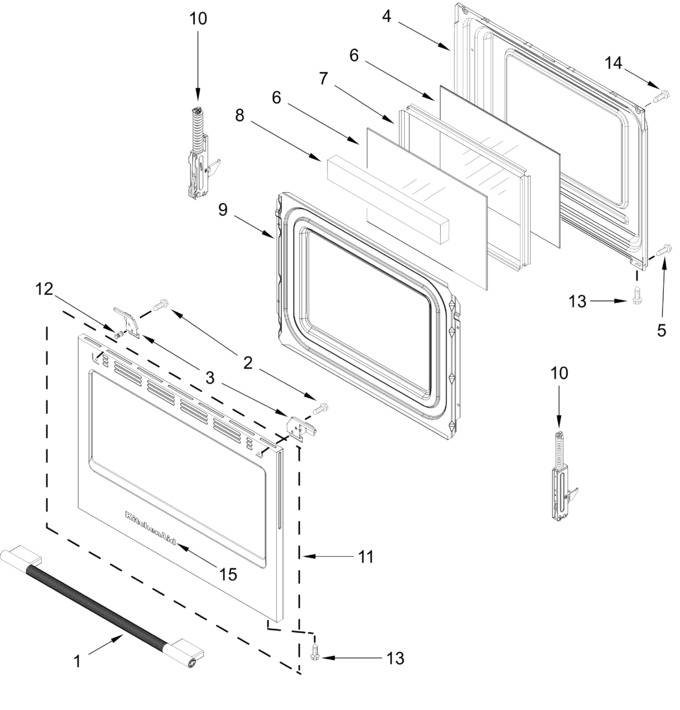

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773160 | Handle (stainless) (Replaces: W11680261) |
|
$ 115.65 | |||||
| 2 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 3 | W11726809 | Bracket, Handle Mount (left) (Replaces: W11417442) |
|
$ 26.72 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11809823 | Retainer, Insulation (Replaces: W11788182) |
|
- | |||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 11 | W11795880 | Door Assembly (stailess) (Replaces: W11756893) |
|
- | |||||
| 12 | W11773159 | Stud (Replaces: W11687274) |
|
$ 26.87 | |||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 14 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 15 | W11759445 | Badge (Replaces: W11688412) |
|
Immediately | $ 45.29 | ||||
| W11726808 | Bracket, Handle Mount (right) (Replaces: W11157607) |
|
- | ||||||
| WPW10440013 | Hinge, Door (active, Full Glass) (Replaces: W10440013) |
|
Immediately | $ 57.42 |
