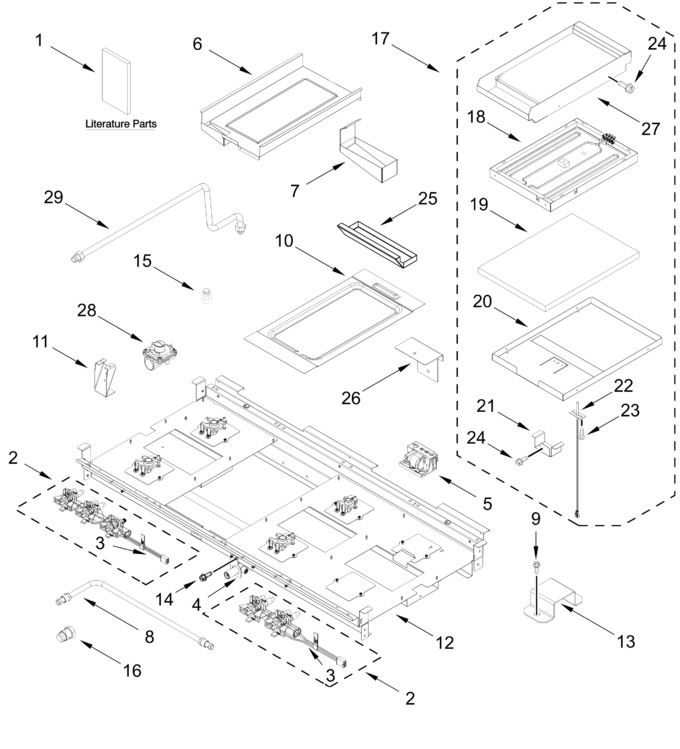

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11797100		Valve Manifold Assembly   (Replaces: W11651416)		Appelez-nous	-
3	W11788852		Switch, Harness   (Replaces: W11596340)				$ 353.27
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 71.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 73.44
6	W11328011		Capture, Grill Grease   (Replaces: W11120957)		Appelez-nous	-
7	W11328012		Tray, Grill Drip   (Replaces: W11174414)		Appelez-nous	-
8	W11328963		Tube, Manifold Supply   (Replaces: W10892796)		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W11328372		Deflector, Grill Heat   (Replaces: W11120965)		Appelez-nous	-
11	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
12	ARIDBAA9548A1EB15B27ADE369B6B57A1AD		Box, Burner (not Serviced)		Appelez-nous	-
13	W11174418		Bracket, Grill Orifice Holder		Appelez-nous	-
14	7101P42660		Screw		Appelez-nous	-
15	4453116		Adapter, Male				$ 161.49
16	W10892063		Plug, Supply Outlet		Appelez-nous	-
17	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,392.32
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 332.53
19	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
20	W11330430		Tray, Griddle Insulation		Appelez-nous	-
21	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
22	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 205.63
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
24	W10162096		Screw				$ 19.71
25	W10276497		Tray, Griddle Drip				$ 363.63
26	W11285353		Bracket, Grill Grease Capture		Appelez-nous	-
27	W11602622		Module, Griddle   (Replaces: W11360151)		Appelez-nous	-
28	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 215.01
29	W11320154		Tube, Pressure Regulator   (Replaces: W11106963)				$ 167.32
	W11428599		Kit, Lp Conversion   (Replaces: W11422176)			Immediately	$ 43.06
	W11508931		Wiring Diagram (cooktop)		Appelez-nous	-
	W11565463		Wiring Diagram (oven)		Appelez-nous	-
	ARI258DA94C9CF5E70E3AC8179901954C3C		(right Center Front, Right Center Rear)		Appelez-nous	-
	W11202265		Sheet, Tech		Appelez-nous	-
	W11184746		Guide, Internet Connectivity		Appelez-nous	-
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	ARI55C06F183F5209A80F64451115E0C931		(left)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 102.35
	W11321066		Cord, Power   (Replaces: W11212216)				$ 107.05
	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 118.67
	W11317790		Harness, Main (30")   (Replaces: W11200315)				$ 222.98
	W11317789		Harness, Main (18 In)   (Replaces: W11200311)				$ 223.52
	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 105.08
	W10780278		Harness, Door Lock			Immediately	$ 86.28
	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 18.19
	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
	4450800		Screw, Grounding				$ 12.12
	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
	W11320139		Tube, Manifold Supply   (Replaces: W10892789)		Appelez-nous	-
	W11200333		Harness, Cooktop		Appelez-nous	-
	W11785685		Valve Manifold Assembly   (Replaces: W11651409)				$ 481.27
	ARIFAC3CD3E424B8251FFB54C385EAB94A6		(left Front, Left Rear, And Grill)		Appelez-nous	-
	W11785278		Switch, Harness   (Replaces: W11596339)		Appelez-nous	-
	W11508899		Use And Care Guide		Appelez-nous	-
	W11508890		Install Instructions		Appelez-nous	-
