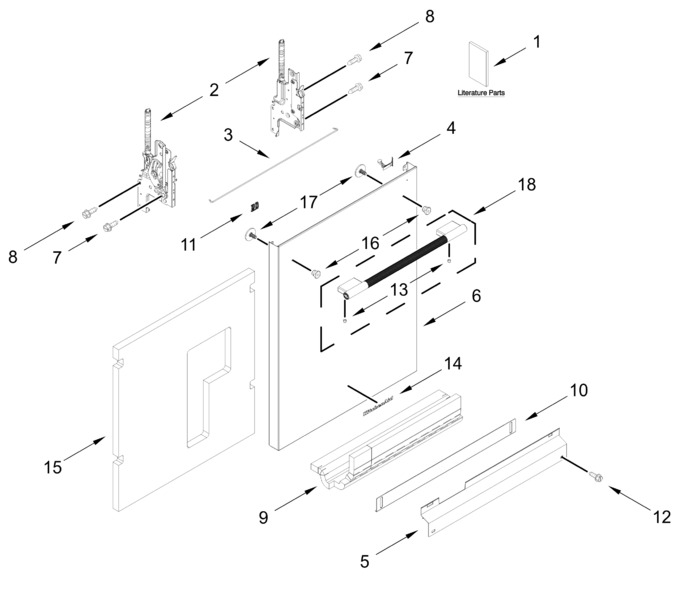

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11766666 | Arm, Hinge (left) (Replaces: W11721083) |
|
Immediately | $ 53.24 | ||||
| 3 | W11377160 | Cross Brace, Door |
|
$ 30.02 | |||||
| 4 | W11102920 | Light Pipe |
|
$ 61.35 | |||||
| 5 | W11545318 | Access Panel (black) (Replaces: W11108979) |
|
Immediately | $ 25.11 | ||||
| 6 | W11791512 | Front Panel (black Ore, Includes Light Pipe, Badge And Barrel Nut) (Replaces: W11714462) |
|
$ 492.45 | |||||
| 7 | W11676450 | Screw (Replaces: 3400000) |
|
$ 13.28 | |||||
| 8 | WPW10309090 | Screw (Replaces: W11364953) |
|
Immediately | $ 69.17 | ||||
| 9 | W11573704 | Insulation, Single Layer (Replaces: W11038694) |
|
Immediately | $ 26.98 | ||||
| 10 | W11579528 | Toe Panel (black) (Replaces: W11467733) |
|
Immediately | $ 29.61 | ||||
| 11 | W10692757 | Barrel Nut, Front Panel |
|
$ 14.41 | |||||
| 12 | W11551775 | Screw (black) (Replaces: W11438978) |
|
Immediately | $ 15.33 | ||||
| 13 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 6.80 | ||||
| 14 | W11783340 | Badge (Replaces: W11749368) |
|
$ 27.99 | |||||
| 15 | W11778318 | Insulation, Front Panel (Replaces: W10919859) |
|
$ 21.47 | |||||
| 16 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 7.98 | ||||
| 17 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 18 | W11791514 | Handle Assembly (black Ore) (Replaces: W11692260) |
|
$ 181.76 | |||||
| W11776376 | Energy Guide |
|
- | ||||||
| W11767169 | Owners Manual |
|
- | ||||||
| W11766665 | Arm, Hinge (right) (Replaces: W11721082) |
|
Immediately | $ 53.24 | |||||
| W11366144 | Tech Sheet |
|
- |
