Bulkhead Parts
Burner Assembly Parts
Cabinet Parts
Door Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

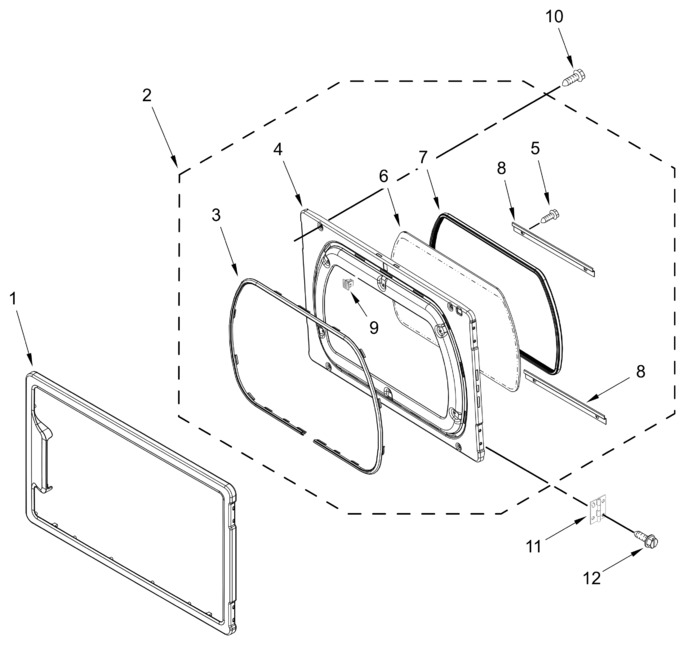

| 1 | ARI9338A077E4D9378467A4A41B1EBCED1F | Assembly, Outer Door |
|
- | |||||
| 2 | ARI5E38FB479986383240A9381801D79076 | Assembly, Inner Door |
|
- | |||||
| 3 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 130.12 | |||||
| 4 | ARI534908A71F166646008FA9A5FF95CC98 | Door, Inner |
|
- | |||||
| 5 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 6 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 263.61 | |||||
| 7 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 28.37 | |||||
| 8 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 9 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 10 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 11 | ARI1E0B5C6D6EBA701B61A5A77DE656783F | Hinge & Pin Assembly |
|
- | |||||
| 12 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| WPW10284127 | Assembly, Door Outer (white) (Replaces: W10284127) |
|
$ 222.35 | ||||||
| W11652037 | Assembly, Inner Door (white) (Replaces: W10513690) |
|
$ 208.90 | ||||||
| W10822056 | Inner Door (white) (Replaces: W10470571) |
|
$ 219.14 | ||||||
| WPW10279703 | Hinge And Pin Assembly (silver) (Replaces: W10279703) |
|
$ 75.83 |
