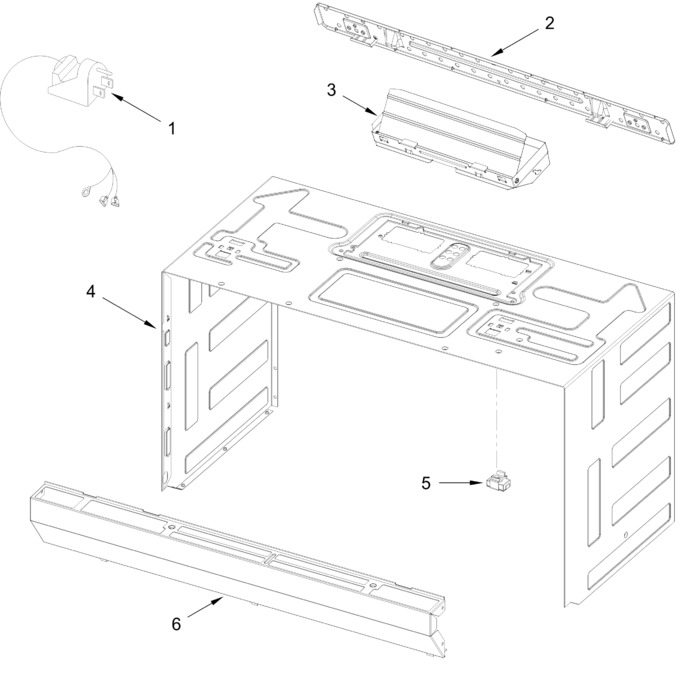

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 19.40 | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 22.22 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 76.13 | ||||
| 4 | W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 163.94 | ||||
| 5 | W11398933 | Mounting Nut Assembly |
|
$ 12.74 | |||||
| 6 | W10845643 | Grille, Vent (black) |
|
$ 97.52 | |||||
| ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 | Miscellaneous Parts |
|
- | ||||||
| W11746342 | Harness, Main (Replaces: W11662304) |
|
Immediately | $ 74.47 | |||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 93.35 | |||||
| W11301790 | Harness (magnetron To High Voltage Transformer) |
|
Immediately | $ 137.70 |
