SELECT A DIAGRAM

Basket And Tub Parts


Console And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

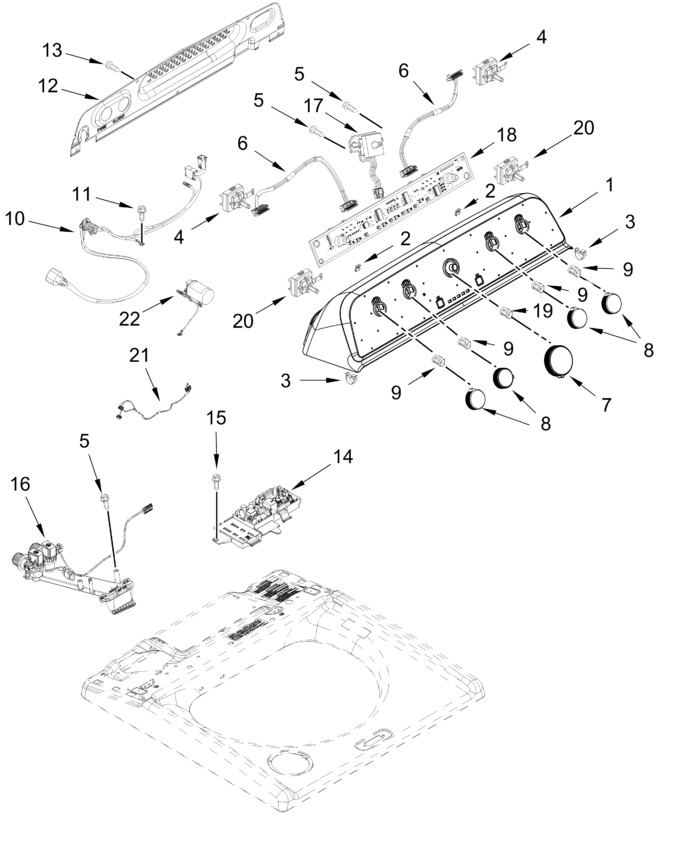

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11795779		Assembly, Console (black)   (Replaces: W11751802)		Appelez-nous	-
2	W11213336		U-nut   (Replaces: W10298336)				$ 7.32
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 169.49
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
6	W11807283		Harness, Upper   (Replaces: W11437973)				$ 45.00
7	W11675852		Knob, Large   (Replaces: W11328381)			Immediately	$ 33.32
8	W11625514		Push To Start Knob (white)   (Replaces: W11398762)			Immediately	$ 33.18
9	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
10	W11513259		Power Cord Assembly   (Replaces: W11335102)			Immediately	$ 38.10
11	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
12	W10611544		Panel, Console Rear Cover				$ 307.11
13	W11685943		Screw   (Replaces: W10660565)				$ 13.47
14	W11795777		Appliance Control Unit (acu)   (Replaces: W11751724)			Immediately	$ 361.01
15	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
16	W11513255		Water Inlet Assembly (complete)   (Replaces: W11385821)			Immediately	$ 89.22
17	W11675700		Encoder, Pca   (Replaces: W11609449)				$ 287.01
18	W11675701		Hmi   (Replaces: W11612331)			Immediately	$ 287.99
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
20	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 179.60
21	W11782261		Harness, Water Valve   (Replaces: W11335103)				$ 43.48
22	W11638178		Assembly, Line Filter   (Replaces: W11296733)				$ 78.05

    View Diagram in Separate Window       Print Part List
