SELECT A DIAGRAM
New Model Search:

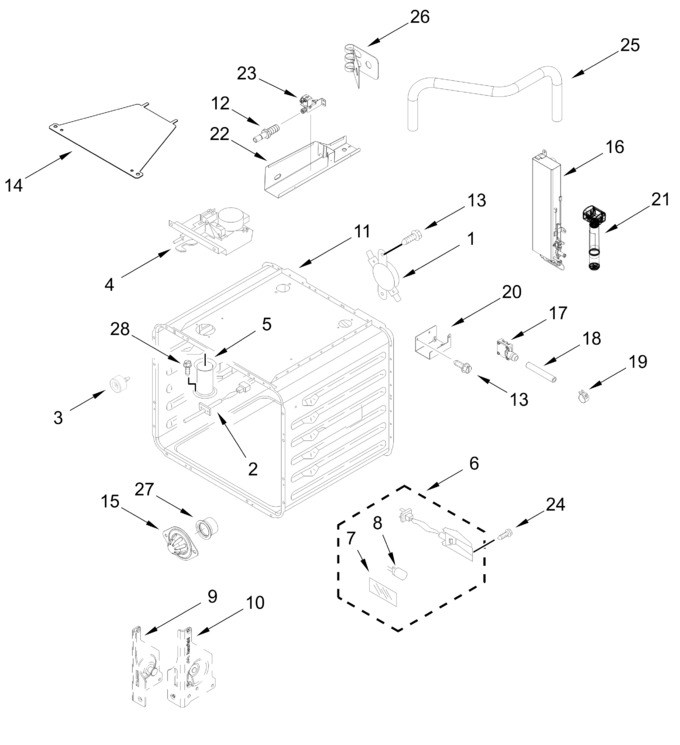

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 2 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 143.11 | ||||
| 3 | WPW10351278 | Bumper And Screw (Replaces: W10351278) |
|
$ 9.91 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 294.89 | ||||
| 5 | W11318343 | Tube, Vent (Replaces: W11290663) |
|
$ 94.89 | |||||
| 6 | W11233684 | Oven Light Assembly (Replaces: W11223932) |
|
$ 100.20 | |||||
| 7 | W10169756 | Lens, Light |
|
$ 37.97 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 46.52 | ||||
| 9 | ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 | Receiver, Hinge (not Serviced) |
|
- | |||||
| 10 | ARI8F73C283CB1A0CC3E053DB4C6CDD3B07 | Receiver, Hinge (not Serviced) |
|
- | |||||
| 11 | ARID977495C9905E1411E0312A526DED125 | Liner, Oven (not Serviced) |
|
- | |||||
| 12 | W11788845 | Coupler, Water Line (Replaces: W11768283) |
|
- | |||||
| 13 | 7101P42660 | Screw |
|
- | |||||
| 14 | W10160858 | Cover, Latch |
|
$ 69.25 | |||||
| 15 | W11177696 | Cover, Boiler Orifice |
|
- | |||||
| 16 | 8186352 | Assembly, Boiler (Replaces: W10864671) |
|
$ 310.89 | |||||
| 17 | W10194453 | Switch, Pressure |
|
$ 254.00 | |||||
| 18 | WPW10076930 | Hose, Silicone (translucent) (Replaces: W10076930) |
|
$ 23.82 | |||||
| 19 | WP489503 | Clamp, Crimp (black) (Replaces: 9761147) |
|
Immediately | $ 10.16 | ||||
| 20 | W10331561 | Bracket, Steam Mount |
|
- | |||||
| 21 | WPW10049700 | Filter (Replaces: W10049700) |
|
$ 328.87 | |||||
| 22 | W10160877 | Enclosure, Steam Valve |
|
- | |||||
| 23 | W10111418 | Valve, Solenoid |
|
$ 151.74 | |||||
| 24 | 4449748 | Screw |
|
$ 12.81 | |||||
| 25 | W11334757 | Tube, Copper Steam |
|
- | |||||
| 26 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 27 | W11092978 | Orifice, Boiler Slip Fit |
|
- | |||||
| 28 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 13.25 | ||||
| W10116067 | Hose, Silicone (red) |
|
- | ||||||
| WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.52 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11688396 | Insulation, Back (30 In) (Replaces: W10282816) |
|
- | ||||||
| WP489503 | Clamp, Crimp (red) (Replaces: 9761146) |
|
Immediately | $ 10.16 | |||||
| W11661177 | Insulation, Wrap (30 In) (Replaces: W10282810) |
|
$ 146.25 |
