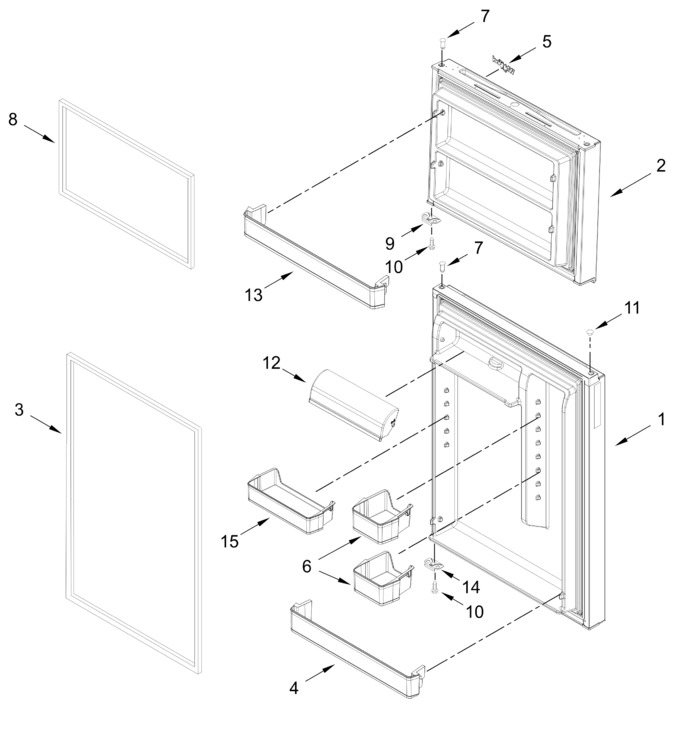

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11777205 | Refrigerator Door (black, Includes Door Gasket) (Replaces: W11750998) |
|
$ 215.95 | |||||
| 2 | W11777203 | Freezer Door (black, Includes Door Gasket) (Replaces: W11751006) |
|
- | |||||
| 3 | W11240749 | Gasket, Rc Door (black) (Replaces: W10678768) |
|
Immediately | $ 300.69 | ||||
| 4 | W11807633 | Needs Description (Replaces: W11750538) |
|
$ 56.49 | |||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 6 | W11807375 | Needs Description (Replaces: W11750604) |
|
$ 56.49 | |||||
| 7 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 8 | W11229610 | Gasket, Fc Door (black) (Replaces: W10667843) |
|
Immediately | $ 300.69 | ||||
| 9 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 10 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 11 | WP2212651 | Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 12 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 13 | W11807630 | Needs Description (Replaces: W11750547) |
|
- | |||||
| 14 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 68.81 | |||||
| 15 | W11807631 | Bin, Rc Door (large) (Replaces: W11750600) |
|
$ 56.49 |
