New Model Search:

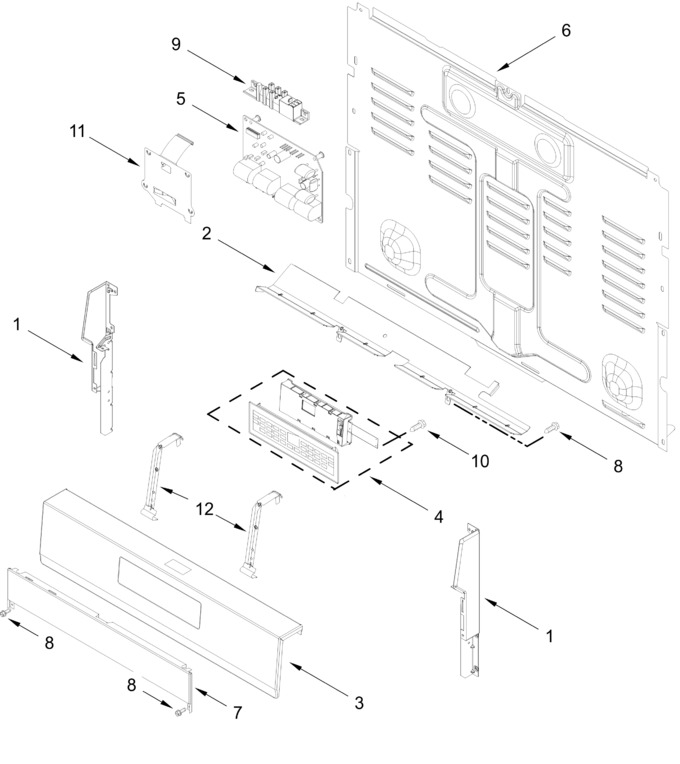

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11795503 | Console, Endcap (stainless, Left) (Replaces: W11779388) |
|
- | |||||
| 2 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 3 | W11730079 | Panel, Control (stainless) (Replaces: W11299266) |
|
$ 211.90 | |||||
| 4 | W11764619 | Control, Electronic (Replaces: W11761440) |
|
$ 377.36 | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W11730305 | Cover, Back (Replaces: W11393670) |
|
- | |||||
| 7 | W11730240 | Panel, Lower (stainless) (Replaces: W11625438) |
|
$ 201.31 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 11 | W11750420 | Bracket, Mounting (dsi) (Replaces: W11736648) |
|
- | |||||
| 12 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 27.33 | |||||
| W11795504 | Console, Endcap (stainless, Right) (Replaces: W11779387) |
|
- |
