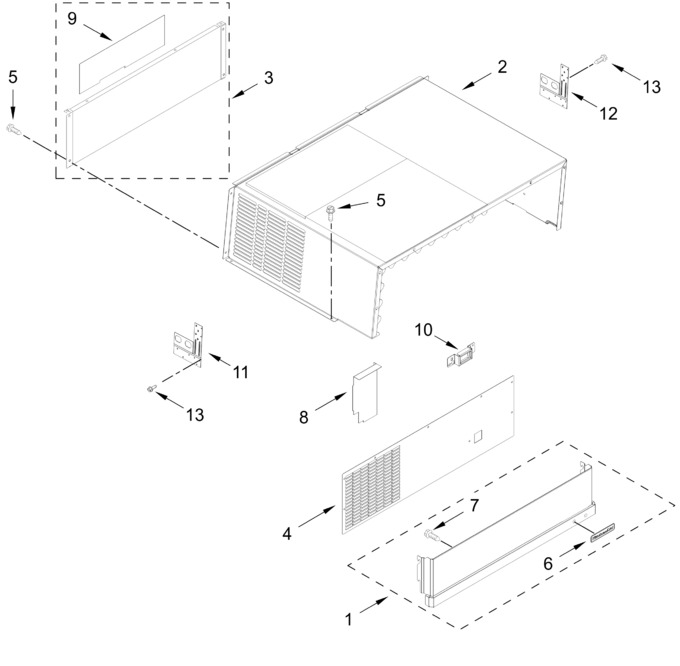

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788233		Grille Assembly, Top (juniper)   (Replaces: W11756783)		Appelez-nous	-
2	W11735285		Cover, Upper Unit   (Replaces: W11708444)			Immediately	$ 185.37
3	W11729400		Panel, Unit Back   (Replaces: W11708420)		Appelez-nous	-
4	W11435372		Cover, Unit Front			Immediately	$ 42.89
5	W10784922		Screw (black)		Appelez-nous	-
6	W11759445		Badge (smoked Chrome)   (Replaces: W11688412)			Immediately	$ 45.29
7	WP489399		Screw   (Replaces: 489399)				$ 6.57
8	W10645086		Divider, Unit Air				$ 92.52
9	W11244166		Insulation, Unit Back Panel				$ 71.09
10	W11356980		Cover, Safety Switch		Appelez-nous	-
11	W11777557		Bracket, Install (left)   (Replaces: W11756499)		Appelez-nous	-
12	W11777558		Bracket, Install (right)   (Replaces: W11756500)				$ 121.76
13	W11233072		Screw   (Replaces: W11546547)			Immediately	$ 13.25
