SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

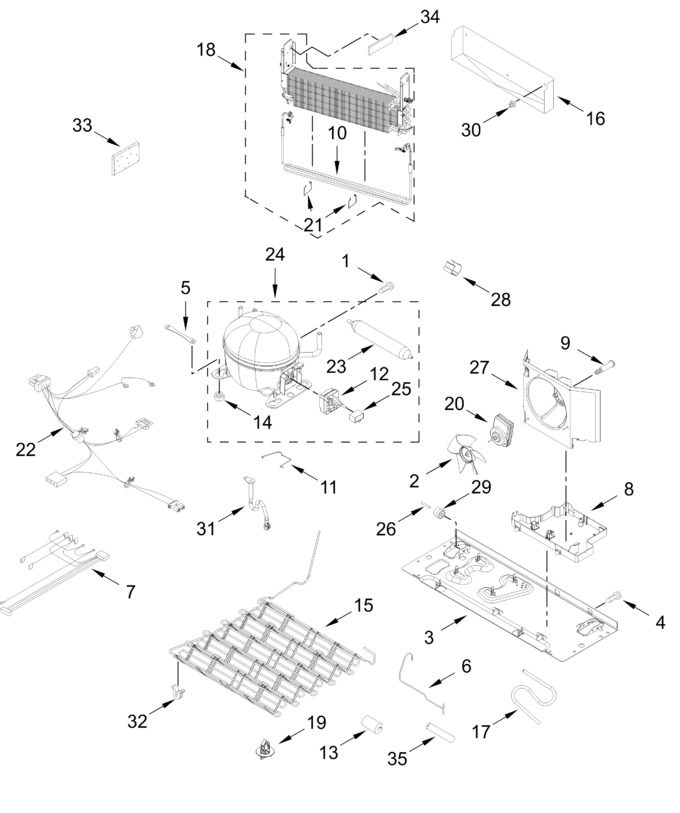

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 89.06
3	W11727652		Basepan   (Replaces: W11604797)		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	W10236396		Strap, Compressor			Immediately	$ 20.81
6	W11790744		Tube, Discharge   (Replaces: W11784531)		Appelez-nous	-
7	W11524653		Harness, Evaporator (includes Defrost Thermostat)   (Replaces: W11305539)			Immediately	$ 98.36
8	WPW10655367		Pan, Drain   (Replaces: W10655367)			Immediately	$ 103.34
9	W10829281		Screw   (Replaces: W10622701)				$ 13.28
10	W11524652		Heater, Defrost   (Replaces: W11287564)			Immediately	$ 139.41
11	W11524474		Strap, Bale   (Replaces: W11379613)		Appelez-nous	-
12	W11524472		Device, Start   (Replaces: W11359985)			Immediately	$ 32.45
13	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
14	WPW10169124		Grommet, Compressor   (Replaces: 10835903)				$ 7.55
15	W11482308		Condenser   (Replaces: W11353138)				$ 223.31
16	W11524470		Tray, Drip   (Replaces: W11337772)		Appelez-nous	-
17	W11689475		Tube, Suction   (Replaces: W11623085)				$ 68.19
18	W11598432		Assembly, Evaporator And Heater   (Replaces: W11515436)			Immediately	$ 332.54
19	W10815863		Clip, Condenser			Immediately	$ 40.66
20	W11613295		Motor, Condenser Fan   (Replaces: W11505534)			Immediately	$ 143.68
21	W11380964		Clip, Heater				$ 18.53
22	W11741475		Harness, Unit (includes Power Cord)   (Replaces: W11654034)			Immediately	$ 121.28
23	W11109499		Drier   (Replaces: W11353156)			Immediately	$ 39.12
24	W11781375		Compressor   (Replaces: W11736217)				$ 649.27
25	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
26	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
27	W11556315		Shroud, Condenser Fan   (Replaces: W11463236)				$ 83.64
28	W10281329		Clip, Drier				$ 13.73
29	12477102		Roller, Rear			Immediately	$ 7.38
30	10623002		Clip, Evaporator				$ 12.11
31	W10619951		Extension, Drain Tube   (Replaces: W10622099)			Immediately	$ 46.23
32	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 8.76
33	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
34	W11451451		Gasket, Foam   (Replaces: W11244122)				$ 13.03
35	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 21.32
	ARI7EAC8134DAB8FF5AAAE27020D6EE8424		(heat Loop To Condenser)		Appelez-nous	-
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 25.89
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	W11506621		6 Nk Ms 00			Immediately	$ 22.00
	W11506635		Tube, Charging (1/4 In, Includes Schrader Valve)			Immediately	$ 37.03
	ARI169C38591D7F4AD8FB3D43FAEA44FC75		(charging Tube To Compressor)		Appelez-nous	-
	W11504445		5/4 Nr Ms 00			Immediately	$ 28.92
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 43.90
	W11506623		5 Nk Ms 00			Immediately	$ 22.00
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	W11504431		7/5 Nr Ms 00			Immediately	$ 27.13
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARIFCEC032782393DEB5E6F8972AEAF15B6		(discharge Tube To Compressor)		Appelez-nous	-
	ARI7AFB8E61A89689BD03F039F645915C7E		(discharge Tube To Condenser)		Appelez-nous	-
	W11504416		8.5/6 Nr Ms 00			Immediately	$ 27.51
	W11504423		8/2 Nr Al 00			Immediately	$ 29.57
	W11504432		6/5 Nr Ms 00			Immediately	$ 25.88
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARI18911813565D74C34EFFD8E0B2F6837E		49 Grams (r600a)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
