SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

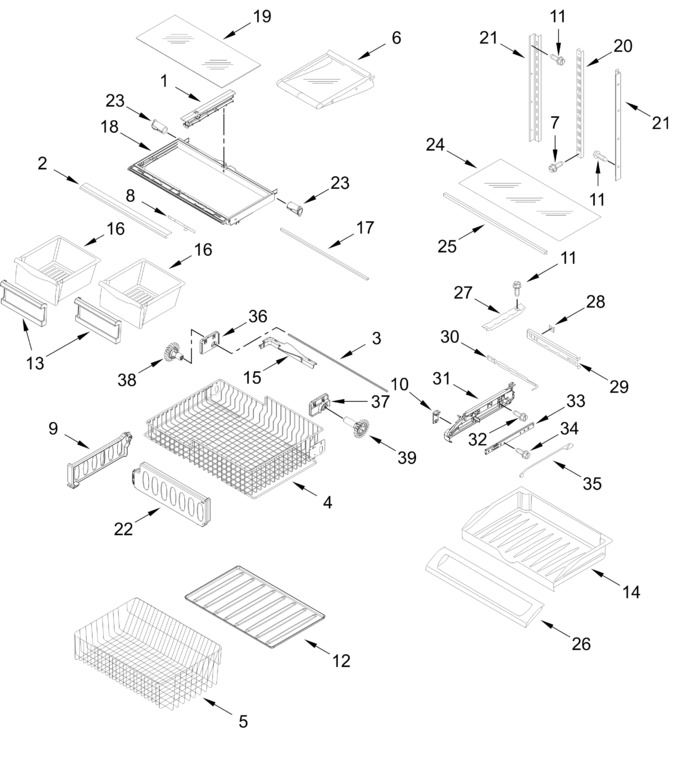

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: W10326469N)			Immediately	$ 33.37
2	WPW10231345		Trim, Crisper   (Replaces: W10231345N)				$ 137.67
3	W11173556		Shaft, Rack   (Replaces: W10802333)				$ 32.38
4	W11251264		Basket, Freezer (upper)   (Replaces: W11115256)				$ 192.59
5	WPW10293682		Basket, Freezer (lower)   (Replaces: W11115781)				$ 181.18
6	W11540779		Shelf Assembly (1/2 Width)   (Replaces: W11363286)				$ 152.48
7	W10215666		Screw				$ 9.53
8	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
9	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
10	W11498983		Knob, Temperature Control   (Replaces: 12655204)				$ 30.64
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
12	WP67006104		Tray, Lower Basket   (Replaces: 13025201)				$ 89.31
13	WP67005923		Front, Crisper Pan   (Replaces: 12802602SP)				$ 79.13
14	WP67003531		Drawer, Pantry   (Replaces: 12731302)				$ 185.41
15	W10149389		Lift, Bail Arm   (Replaces: W10149389N)				$ 92.66
16	WP67004515		Pan, Crisper   (Replaces: 12804601SP)			Immediately	$ 176.72
17	WP12642303WD		Brace, Crisper Cover   (Replaces: 12642303WD)				$ 112.26
18	WPW10329866		Frame, Crisper   (Replaces: W10329866)				$ 264.38
19	WP67006704		Glass, Shelf   (Replaces: 12204824N)				$ 263.43
20	W10273463		Ladder, Center				$ 29.61
21	WPW10569182		Ladder, Side   (Replaces: W10569182)				$ 27.59
22	W10171558		Divider, Basket (upper)				$ 42.49
23	WP13062602		Support, Crisper Frame   (Replaces: 13062602)				$ 84.87
24	W11033333		Glass, Shelf   (Replaces: W10893772)				$ 235.83
25	W11210956		Support, Glass   (Replaces: W10528935)				$ 36.20
26	W10827015		Lid, Pantry   (Replaces: 12656813)			Immediately	$ 197.21
27	WP67001719		Track, Deli Drawer   (Replaces: 12531901)			Immediately	$ 8.99
28	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
29	12656202		Housing, Control				$ 148.84
30	WP67003793		Slide, Temperature Control   (Replaces: 12655402)			Immediately	$ 78.49
31	W10874836		Endcap, Pantry (left Hand)   (Replaces: W10845509)			Immediately	$ 38.43
32	WP98165		Screw   (Replaces: 12990504)				$ 8.57
33	WPW10235370		Glide, Pantry   (Replaces: W10235370)			Immediately	$ 298.06
34	WP67006415		Screw   (Replaces: 12990512)				$ 8.38
35	WP67003795		Bar, Control   (Replaces: 12655304)				$ 8.45
36	W10348259		Mount, Gear (left Hand)				$ 89.87
37	W10348260		Mount, Gear (right Hand)				$ 89.90
38	WPW10474716		Gear, Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
39	WPW10474715		Gear, Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
	W10874836		Endcap, Pantry (right Hand)   (Replaces: W10845508)			Immediately	$ 38.43

    View Diagram in Separate Window       Print Part List
