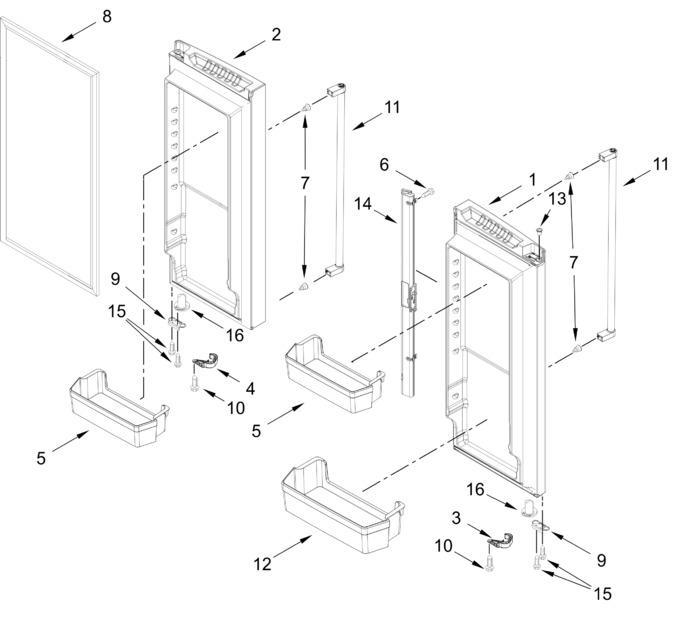

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661563 | Left Door Assembly (stainless) (Replaces: W11622647) |
|
$ 967.19 | |||||
| 2 | W11435333 | Right Door Assembly (stainless) (Replaces: W11377201) |
|
$ 963.59 | |||||
| 3 | W10918008 | Latch, Door Closer (grey, Left Hand) (Replaces: W10833741) |
|
$ 15.88 | |||||
| 4 | W10918010 | Latch, Door Closer (grey, Right Hand) (Replaces: W10833739) |
|
Immediately | $ 15.88 | ||||
| 5 | W11808087 | Bin, Door (medium) (Replaces: W11783260) |
|
Immediately | $ 50.84 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 223.74 | ||||
| 9 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 10 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 11 | W11759446 | Door Handle (stainless) (Replaces: W11682895) |
|
Immediately | $ 128.15 | ||||
| 12 | W11808088 | Bin, Door (gallon) (Replaces: W11783263) |
|
$ 50.84 | |||||
| 13 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 14 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 170.11 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 16 | WP12028505AP | Closer, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 |
