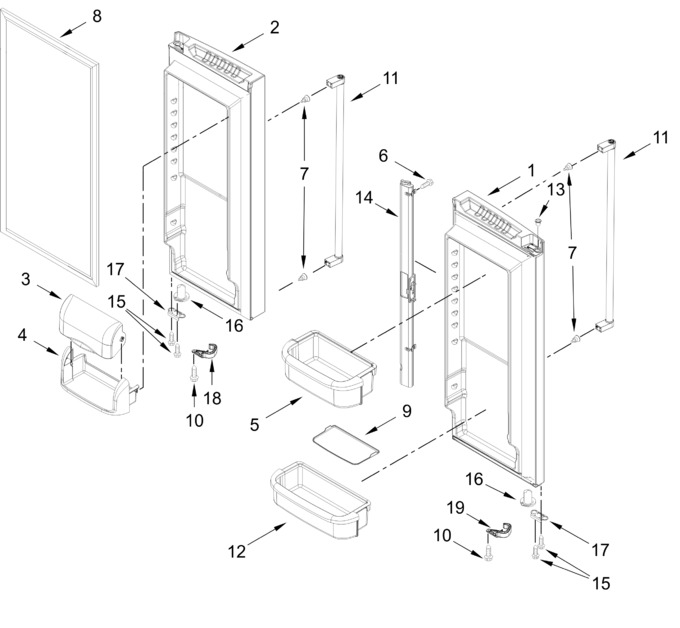

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661559		Door Assembly (black Stainless, Left Hand)   (Replaces: W11622644)				$ 1,078.78
2	W10919633		Door Assembly (black Stainless, Right Hand)   (Replaces: W10879190)				$ 1,211.82
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10371194		Bucket, Medium   (Replaces: W10371194)			Immediately	$ 77.23
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 17.06
8	W10830162		Gasket, Door (grey)			Immediately	$ 248.60
9	W11402028		Gripper, Gallon   (Replaces: W10449760)			Immediately	$ 89.74
10	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
11	W11483532		Handle Assembly (stainless)   (Replaces: W11339136)			Immediately	$ 178.01
12	WPW10289497		Bucket, Gallon   (Replaces: W10289497)			Immediately	$ 81.09
13	12996601		Clip, Bushing				$ 10.05
14	WP12722803B		Mullion, Door (black)   (Replaces: 12722803BN)				$ 245.37
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	WP67003639		Closer, Door (black)   (Replaces: 12028505B)				$ 90.32
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.75
18	W10918171		Latch, Door Closer (black, Right Hand)   (Replaces: W10725267)				$ 17.61
19	W10918170		Latch, Door Closer (black, Left Hand)   (Replaces: W10725268)				$ 17.64
