SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

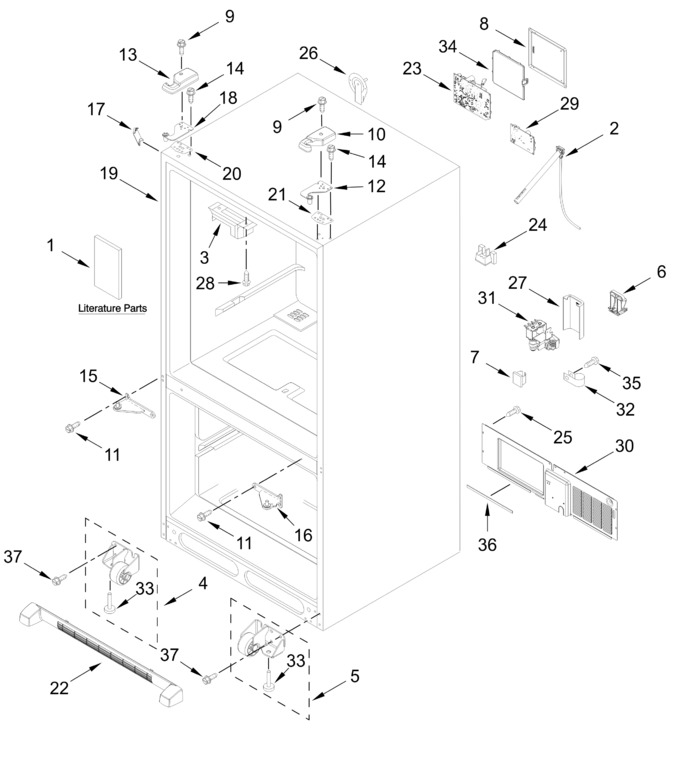

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11817981		Tube Assembly, Fill (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp)   (Replaces: W11046934)			Immediately	$ 91.27
3	W11024160		Block, Pivot   (Replaces: W10120087)				$ 19.98
4	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
5	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
6	W10528513		Sweep, Dual Tube				$ 43.74
7	WPM0104106		Clip, Cord   (Replaces: M0104106)				$ 8.17
8	12961602		Cover, Control Box				$ 116.19
9	12992603		Screw				$ 10.33
10	WPW10120103		Cover, Hinge (grey, Right Hand)   (Replaces: W10120103)				$ 8.42
11	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.72
12	W10210891		Hinge, Top (right Hand)				$ 86.78
13	W11039391		Cover, Hinge (grey, Left Hand)				$ 19.45
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W11747903		Hinge, Center (left Hand)   (Replaces: W11610760)				$ 56.32
16	W11747904		Hinge, Center (right Hand)   (Replaces: W11610761)				$ 56.32
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
18	W10892768		Hinge, Top (left Hand)				$ 76.49
19	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	12999501		Shim, Top Hinge (left Hand)				$ 99.53
21	12999502		Shim, Top Hinge (right Hand)				$ 100.60
22	WPW10534155		Grille, Toe (grey)   (Replaces: W10534155)			Immediately	$ 119.56
23	WPW10120827		Control, Electronic   (Replaces: W10120827)			Immediately	$ 376.76
24	W11686793		Block, Fill Tube   (Replaces: W11651067)				$ 23.57
25	W11686675		Screw   (Replaces: 12990702)				$ 14.27
26	12726003		Cover, Water Line				$ 19.19
27	W10208593		Guard, Dual Water Valve				$ 15.71
28	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
29	WPW10356039		Control, Electronic (power Supply)   (Replaces: W10356039)			Immediately	$ 377.04
30	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 207.99
31	W11524655		Valve, Water Inlet   (Replaces: W11446816)			Immediately	$ 118.72
32	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
33	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
34	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 85.16
35	WP98165		Screw   (Replaces: 12990504)				$ 8.57
36	W11534848		Gasket, Unit Cover			Immediately	$ 22.34
37	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
	W11468670		Use And Care Guide		Appelez-nous	-
	W11665551		Tech Sheet		Appelez-nous	-
	W11789109		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
