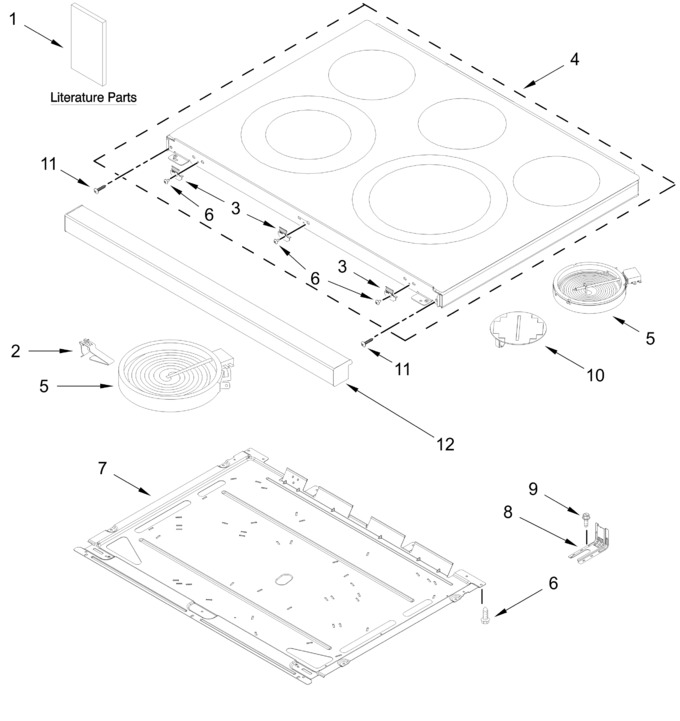

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11814771 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11788871) |
|
- | |||||
| 5 | W10823727 | Element, Dual (3000w) (Replaces: W10711900) |
|
Immediately | $ 342.63 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 10 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 11 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 12 | W11730060 | Bullnose (stainless) (Replaces: W11353382) |
|
Immediately | $ 391.43 | ||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11794809 | Owner's Manual |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11809826 | Harness, Cooktop (Replaces: W11710147) |
|
- | ||||||
| W11781582 | Harness, Rear (Replaces: W11385156) |
|
- | ||||||
| W11702316 | Quick Start Guide |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| W11813668 | Harness, Main (Replaces: W11789205) |
|
- | ||||||
| W11794290 | Tech Sheet |
|
- | ||||||
| W11517959 | Element, (dual 3000w) (Replaces: W11282542) |
|
Immediately | $ 146.68 | |||||
| W11171119 | Element (1200w) (Replaces: W10248261) |
|
Immediately | $ 225.62 | |||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| 3196896 | Clip, Wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- |
