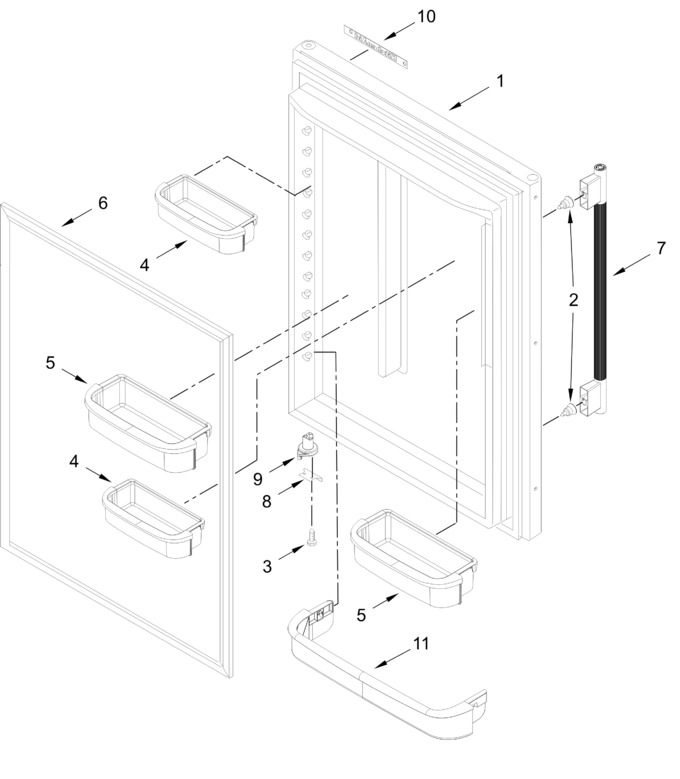

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11443668 | Door, Refrigerator (stainless) (Replaces: W11377189) |
|
$ 895.88 | |||||
| 2 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 3 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 4 | W11808101 | Bucket, Door (small) (Replaces: W11778528) |
|
- | |||||
| 5 | W11808095 | Bucket, Door (medium) (Replaces: W11778553) |
|
$ 58.46 | |||||
| 6 | W11676571 | Gasket, Door (grey) (Replaces: W10443310) |
|
$ 227.86 | |||||
| 7 | W11808099 | Handle, Door (stainless) (Replaces: W11775245) |
|
- | |||||
| 8 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 9 | WP12028505AP | Closer, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 10 | W11759445 | Badge (smoked Chrome) (Replaces: W11688412) |
|
Immediately | $ 50.32 | ||||
| 11 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 |
