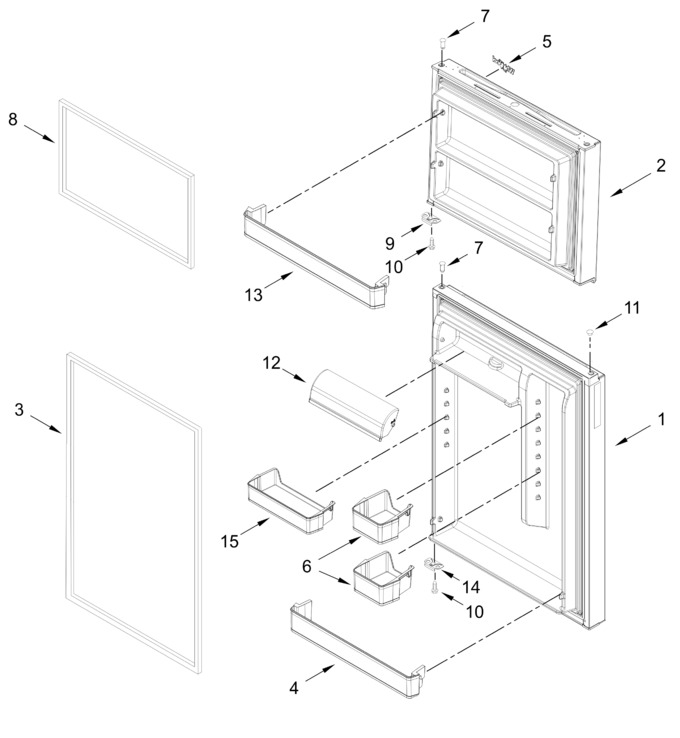

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11778520 | Refrigerator Door (stainless, Includes Door Gasket) (Replaces: W11750999) |
|
$ 194.36 | |||||
| 2 | W11778519 | Freezer Door (stainless, Includes Door Gasket) (Replaces: W11751008) |
|
$ 129.49 | |||||
| 3 | W11784834 | Gasket, Door (grey) (Replaces: W11030683) |
|
Immediately | $ 201.02 | ||||
| 4 | W11807633 | Refrigerator Door Bin (bottom) (Replaces: W11750538) |
|
$ 50.84 | |||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 6 | W11807375 | Refrigerator Door Bin (short) (Replaces: W11750604) |
|
$ 50.84 | |||||
| 7 | W11676573 | Thimble, Top (grey) (Replaces: W10492022) |
|
$ 13.33 | |||||
| 8 | W11574983 | Gasket, Door (grey) (Replaces: W11030682) |
|
$ 83.13 | |||||
| 9 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 10 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 11 | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 12 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 13 | W11807630 | Freezer Door Bin (Replaces: W11750547) |
|
- | |||||
| 14 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 | |||||
| 15 | W11807631 | Bin, Rc Door (large) (Replaces: W11750600) |
|
$ 50.84 |
