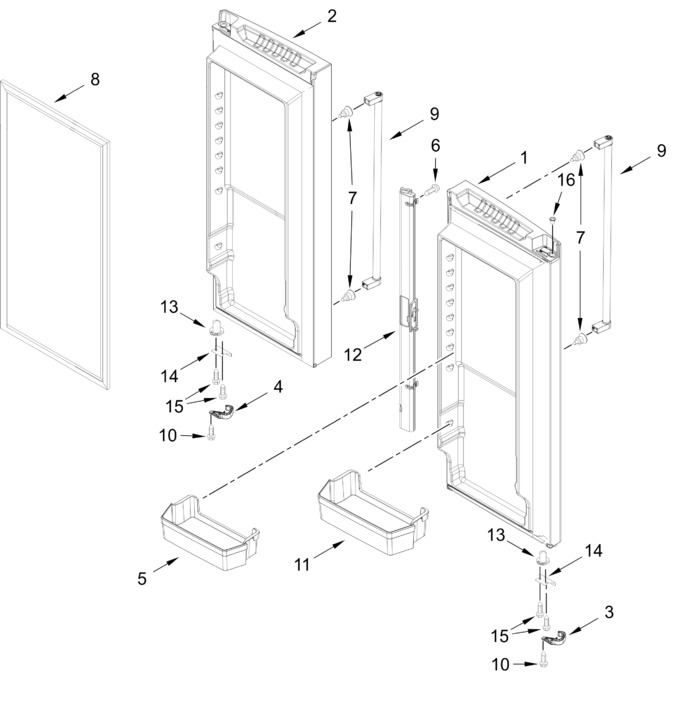

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661563		Left Door Assembly (stainless)   (Replaces: W11622647)				$ 1,074.65
2	W11435333		Right Door Assembly (stainless)   (Replaces: W11377201)				$ 1,070.65
3	W10918008		Latch, Door Closer (grey, Left Hand)   (Replaces: W10833741)				$ 17.64
4	W10918010		Latch, Door Closer (grey, Right Hand)   (Replaces: W10833739)			Immediately	$ 17.64
5	W11808087		Bin, Door (medium)   (Replaces: W11783260)			Immediately	$ 56.49
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 17.06
8	W10830162		Gasket, Door (grey)			Immediately	$ 248.60
9	W11759446		Door Handle (stainless)   (Replaces: W11682895)			Immediately	$ 142.39
10	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
11	W11808088		Bin, Door (gallon)   (Replaces: W11783263)				$ 56.49
12	WP12722803AP		Mullion, Door (grey)   (Replaces: 12722803APN)			Immediately	$ 189.01
13	WP12028505AP		Closer, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
14	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 15.46
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	12996601		Clip, Bushing				$ 10.05
