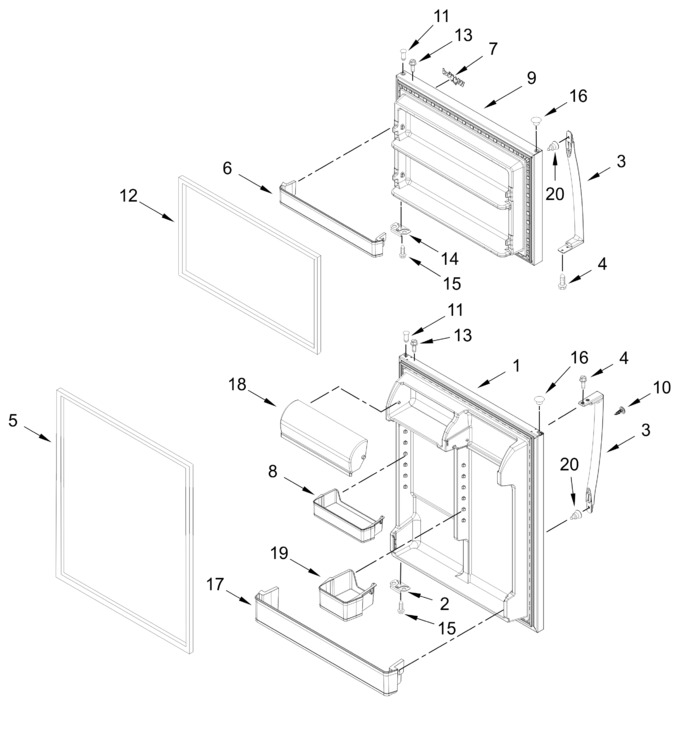

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11778523 | Refrigerator Door, White (includes Door Gasket) |
|
- | |||||
| 2 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 | |||||
| 3 | W10837577 | Handle, Door (white) (Replaces: W10580723) |
|
Immediately | $ 100.40 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | W10838574 | Gasket, Rc Door (white) (Replaces: W10638676) |
|
Immediately | $ 101.21 | ||||
| 6 | W11807630 | Freezer Door Bin (Replaces: W11750547) |
|
- | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 58.63 | ||||
| 8 | W11807631 | Bin, Rc Door (large) (Replaces: W11750600) |
|
$ 50.84 | |||||
| 9 | W11778522 | Freezer Door, White (includes Door Gasket) |
|
- | |||||
| 10 | W10830984 | Hole Plug, Handle (white) (Replaces: W10663736) |
|
$ 7.54 | |||||
| 11 | W11759045 | Thimble, Top (white) (Replaces: W10492018) |
|
Immediately | $ 11.11 | ||||
| 12 | W10861499 | Gasket, Fc Door (white) (Replaces: W10638675) |
|
Immediately | $ 93.00 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 16 | WP2212648 | Plug, Hinge Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | W11807633 | Refrigerator Door Bin (bottom) (Replaces: W11750538) |
|
$ 50.84 | |||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 19 | W11807375 | Refrigerator Door Bin (short) (Replaces: W11750604) |
|
$ 50.84 | |||||
| 20 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.12 |
