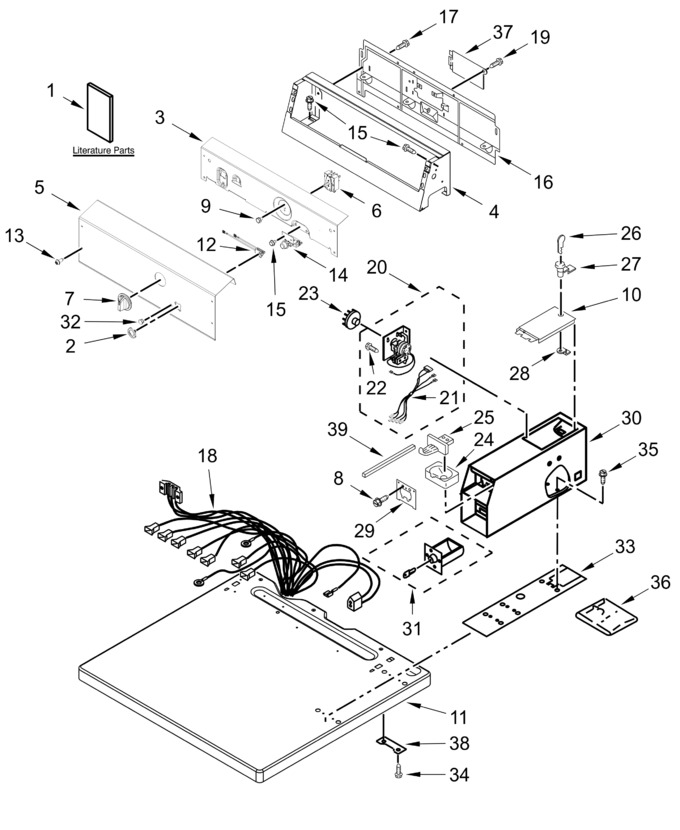

Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W10510149 | Bezel - Pts |
|
Immediately | $ 25.77 | ||||
| 3 | W10461070 | Bracket Control |
|
$ 134.07 | |||||
| 4 | W10461094 | Console (white) |
|
$ 167.97 | |||||
| 5 | W10845275 | Fascia |
|
$ 249.08 | |||||
| 6 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 152.77 | |||||
| 7 | W10492415 | Knob (grey) |
|
$ 18.56 | |||||
| 8 | W10139060 | Nut, 1/4-20 |
|
- | |||||
| 9 | W10139100 | Screw |
|
$ 11.71 | |||||
| 10 | W11283272 | Assembly, Service Door (Replaces: W11269277) |
|
$ 100.05 | |||||
| 11 | W10492412 | Top (white) |
|
- | |||||
| 12 | W10662107 | Lamp, Indicator |
|
$ 24.46 | |||||
| 13 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.57 | |||||
| 14 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 63.75 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 16 | W11089934 | Panel, Rear (console) (Replaces: W10863354) |
|
$ 269.69 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 18 | W10153108 | Harness, Main |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | W11811196 | Timer & Harness Assembly (Replaces: W11772379) |
|
- | |||||
| 21 | W10177793 | Harness, Timer |
|
$ 70.44 | |||||
| 22 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 7.23 | |||||
| 23 | WP3387974 | Timing Cam, 3-pin (60 Minutes) (Replaces: 3387974) |
|
$ 7.87 | |||||
| 24 | W10133509 | Funnel, Coin |
|
$ 78.22 | |||||
| 25 | W11811197 | Coin Chute (Replaces: W11759329) |
|
- | |||||
| 26 | ARI02710E57C9E1EBF340B141631A0E06B7 | Key (service Door) (when Ordering Specify Vendor And Key Number) |
|
- | |||||
| 27 | W11315637 | 777 Lock And Key, Complete (Replaces: 8316526) |
|
Immediately | $ 68.71 | ||||
| 28 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.18 | |||||
| 29 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 30.35 | ||||
| 30 | WPW10529172 | Meter Case (Replaces: W10529172) |
|
$ 345.34 | |||||
| 31 | W11190039 | Money Box With Lock (Replaces: W10860203) |
|
Immediately | $ 177.61 | ||||
| 32 | WPW10133502 | Assembly, Indicator Lights (Replaces: W10133502) |
|
$ 12.16 | |||||
| 33 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 29.39 | |||||
| 34 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 35 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.73 | |||||
| 36 | W11811197 | Coin Chute (Replaces: W11759329) |
|
- | |||||
| 37 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 38 | 3347825 | Plate, Mounting |
|
- | |||||
| 39 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 71.06 | ||||
| WPW10114740 | 777 Lock And Key, Complete (Replaces: W10114740) |
|
$ 123.74 | ||||||
| W10167622 | Wiring Diagram |
|
- | ||||||
| W11770868 | Installation Instructions |
|
- | ||||||
| 51-161-6 | Timing Cam, 6-pin (30 Minutes) (Replaces: 343777) |
|
$ 31.07 |
