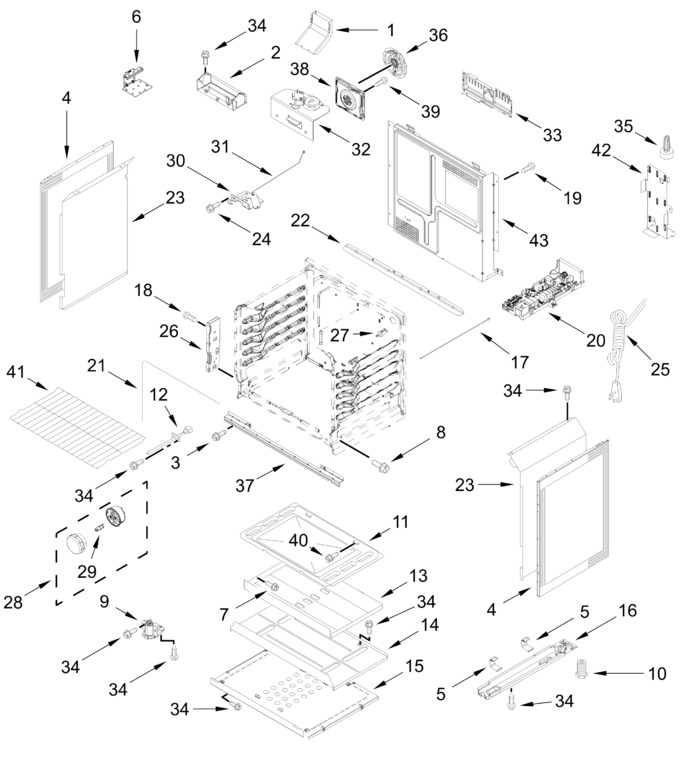

SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Manifold Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730239		Box, Flue   (Replaces: W11366110)		Appelez-nous	-
2	W11730237		Shield, Flue   (Replaces: W11279866)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
4	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 160.65
5	W10137382		Clip, Panel			Immediately	$ 43.58
6	W11727012		Bracket, Cooktop Console   (Replaces: W11287215)		Appelez-nous	-
7	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
8	W11169708		Screw   (Replaces: 3196560)				$ 13.36
9	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
10	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 7.42
11	W11730226		Bottom, Oven   (Replaces: W11602073)				$ 207.95
12	W11730224		Sensor   (Replaces: W11633068)			Immediately	$ 44.03
13	8053967		Baffle, Burner Oven				$ 284.36
14	8053969		Shield, Heat				$ 101.74
15	W11730232		Shield, Lower   (Replaces: W11640074)		Appelez-nous	-
16	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 56.39
17	9757239		Rod, Door Switch				$ 86.73
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
19	W11684512		Screw   (Replaces: 3400080)				$ 13.33
20	W11784062		Control, Electronic   (Replaces: W11761224)				$ 800.30
21	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 45.18
22	W10435470		Brace, Main Back				$ 73.57
23	W11379353		Retainer, Insulation (left)		Appelez-nous	-
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11730265		Cord, Power   (Replaces: W11661976)				$ 76.19
26	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
27	W11620712		Switch, Door   (Replaces: W11511828)			Immediately	$ 41.68
28	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 36.68
29	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
30	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 230.72
31	W10078370		Rod, Push Latch				$ 85.72
32	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 278.60
33	W11727014		Cover, Upper Rear   (Replaces: W11393669)		Appelez-nous	-
34	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
35	8016P02260		Glide, Main Top		Appelez-nous	-
36	W11730229		Fan, Convection (includes Element)   (Replaces: W11644425)		Appelez-nous	-
37	W11464547		Bracket, Front Frame				$ 41.30
38	W11771008		Convect Fan, Cover   (Replaces: W11373156)		Appelez-nous	-
39	W10516115		Screw				$ 13.07
40	W10379120		Screw		Appelez-nous	-
41	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 52.19
42	W11729919		Bracket, Acu   (Replaces: W11365827)				$ 69.39
43	W11747649		Side, Cover   (Replaces: W11633165)				$ 120.55
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11727016		Insulation, Back   (Replaces: W11407376)		Appelez-nous	-
	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 56.39
	W11684776		Insulation, Wrap   (Replaces: W10818362)		Appelez-nous	-
	W11379943		Retainer, Insulation (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
