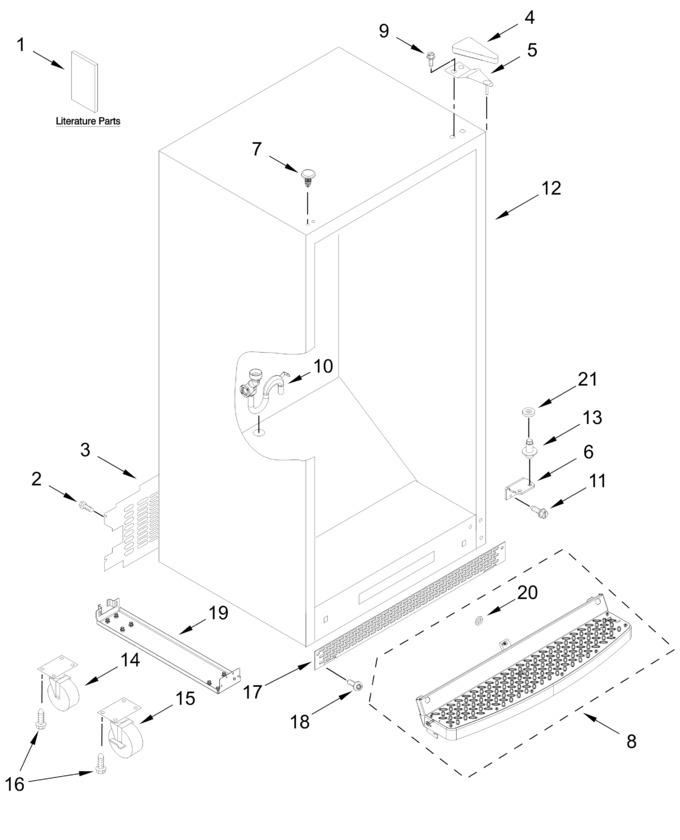

SELECT A DIAGRAM

Cabinet Parts


Door Parts


Liner Parts


Optional Parts (not Included)


Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	380675105		Screw		Appelez-nous	-
3	W11311062		Cover, Unit				$ 105.40
4	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
5	W11728308		Hinge Assembly, Top   (Replaces: W11638835)				$ 21.87
6	W11805068		Hinge Plate, Bottom   (Replaces: W11790781)				$ 132.89
7	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 17.30
8	W11199807		Pedal Assembly   (Replaces: W10897311)		Appelez-nous	-
9	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
10	W11673435		Tube, Drain   (Replaces: W11291514)			Immediately	$ 45.88
11	67006564		Screw   (Replaces: W10709365)			Immediately	$ 7.34
12	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
13	W11676609		Pin, Lower Hinge   (Replaces: W10574325)				$ 13.40
14	WP8204601		Caster, Swivel 5   (Replaces: 8204601)				$ 76.42
15	W10741533		Caster, Rigid 5" (left Hand, With Brake)   (Replaces: 8211251)		Appelez-nous	-
16	WP3400527		Screw   (Replaces: 3400527)				$ 7.26
17	W11199697		Grill, Toe   (Replaces: W10891102)				$ 101.53
18	W11582178		Screw (grey)   (Replaces: W11546560)				$ 13.25
19	W11316673		Bracket, Caster   (Replaces: W11088141)		Appelez-nous	-
20	W11316683		Washer   (Replaces: W11130286)		Appelez-nous	-
21	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.67
	8211250		Caster, Rigid 5" (right Hand, With Brake)				$ 40.15
	W11527799		Use And Care Guide		Appelez-nous	-
	W11644300		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
