SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

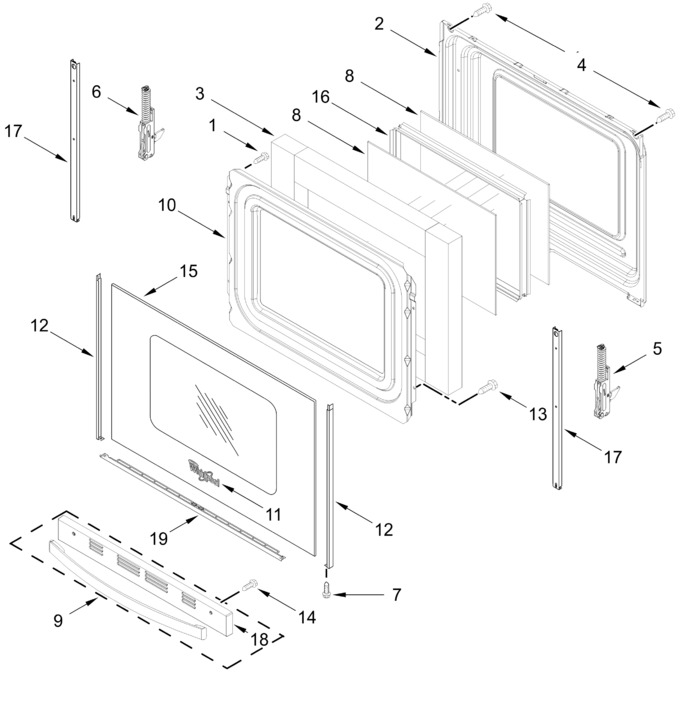

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
5	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 57.42
6	WPW10440013		Hinge, Door (active, Full Glass)   (Replaces: W10440013)			Immediately	$ 57.42
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
8	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
9	W11707071		Handle And Vent Assembly (black)   (Replaces: W11353052)				$ 155.19
10	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 209.98
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
12	W10761018		Trim, Door Side (black, Left)   (Replaces: W10746436)			Immediately	$ 49.32
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
14	W10896982		Screw   (Replaces: W10465158)				$ 7.56
15	W11741357		Glass, Outer Door (black)   (Replaces: W11729636)				$ 163.40
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
17	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
18	W11781569		Door Trim, Vent (black)   (Replaces: W11623352)				$ 148.95
19	W11569689		Trim, Bottom Door (black)   (Replaces: W11444043)			Immediately	$ 54.07
	W10761014		Trim, Door Side (black, Right)   (Replaces: W10746435)			Immediately	$ 65.66

    View Diagram in Separate Window       Print Part List
