Burner Box Parts
Chassis Parts
Cooktop, Burner, And Grate Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

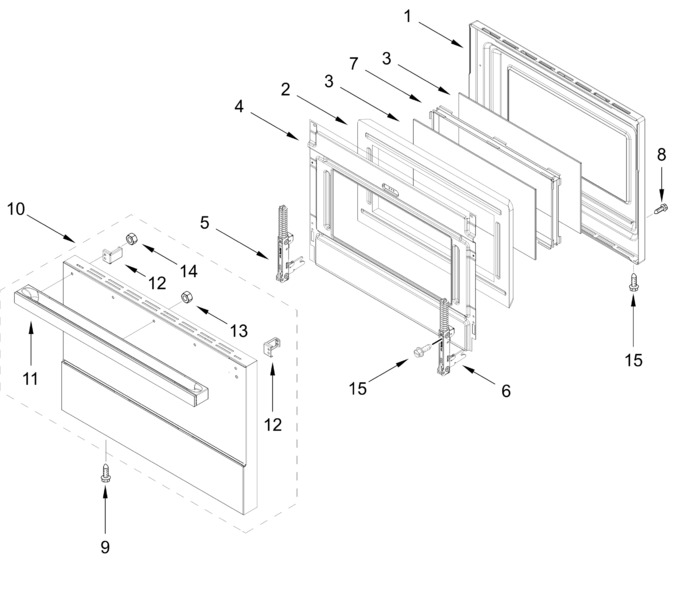

| 1 | W11318831 | Liner, Door (Replaces: W11036771) |
|
Immediately | $ 387.01 | ||||
| 2 | W11688537 | Insulation, Door (30 In) (Replaces: W11413190) |
|
$ 113.22 | |||||
| 3 | W11318823 | Glass, Inner (Replaces: W11184409) |
|
$ 158.15 | |||||
| 4 | W11318344 | Retainer, Glass (Replaces: W11194821) |
|
Immediately | $ 166.16 | ||||
| 5 | W11568941 | Hinge, Door (left) (Replaces: W11096978) |
|
Immediately | $ 137.39 | ||||
| 6 | W11568813 | Hinge, Door (right) (Replaces: W11096977) |
|
Immediately | $ 124.09 | ||||
| 7 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 177.65 | ||||
| 8 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 13.29 | ||||
| 9 | W10162096 | Screw |
|
$ 19.71 | |||||
| 10 | W11315556 | Outer Door Glass Assembly (includes Handle) (Replaces: W10870221) |
|
$ 2,192.38 | |||||
| 11 | W11620698 | Handle, Door (Replaces: W11411876) |
|
- | |||||
| 12 | W11317894 | Bracket, Handle (Replaces: W11194816) |
|
- | |||||
| 13 | W11198435 | Nut |
|
- | |||||
| 14 | 999299 | Nut |
|
- | |||||
| 15 | W11193480 | Screw (Replaces: W10607120) |
|
$ 13.25 |
