Cabinet Parts
Freezer Door Parts
Freezer Liner And Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

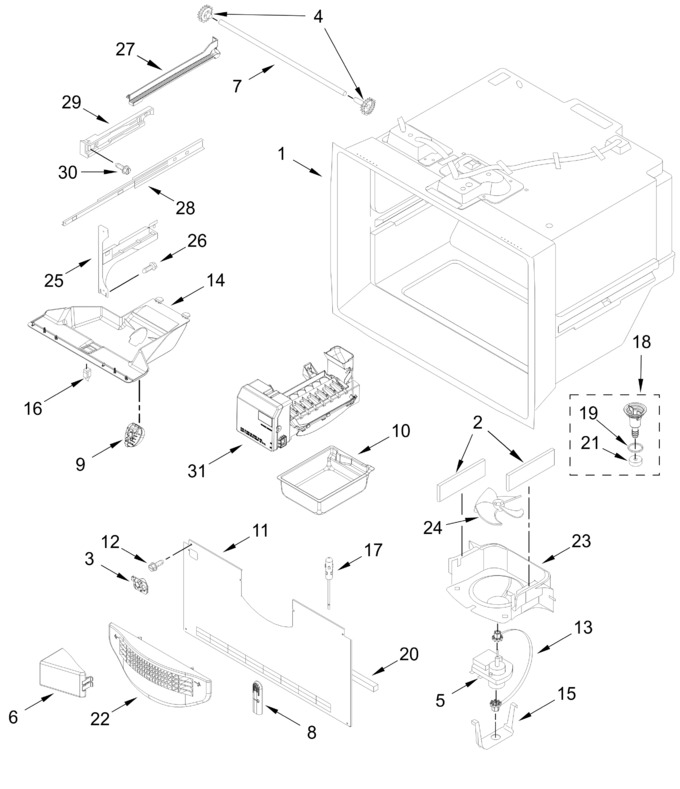

| 1 | ARID4B24459AD3CE840514D8AC6D2EFEC61 | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 3 | W11341630 | Guide, Fill Tube |
|
$ 24.79 | |||||
| 4 | 12002497 | Gear |
|
Immediately | $ 20.26 | ||||
| 5 | W11750337 | Motor, Evaporator (Replaces: W11507418) |
|
Immediately | $ 125.39 | ||||
| 6 | W10157765 | Diverter, Air |
|
$ 83.57 | |||||
| 7 | W11715937 | Shaft, Rack (Replaces: W10802331) |
|
$ 61.82 | |||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 38.37 | |||||
| 10 | WPW10171529 | Pan, Ice (Replaces: W10171529N) |
|
Immediately | $ 170.60 | ||||
| 11 | W10308415 | Cover, Evaporator |
|
$ 269.76 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | W10121318 | Grommet, Fan Motor |
|
$ 45.72 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 120.96 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 33.57 | ||||
| 17 | W10316760 | Thermistor (Replaces: 12791417SP) |
|
Immediately | $ 73.67 | ||||
| 18 | W10815413 | Funnel Assembly, Drain (Replaces: W10662407) |
|
Immediately | $ 46.35 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 20 | W11159742 | Gasket, Foam (Replaces: A3189395) |
|
$ 25.54 | |||||
| 21 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.00 | |||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evaporator Fan (Replaces: 13057901) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 25 | WPW10330991 | Bracket, Door (left Hand) (Replaces: W10330991) |
|
$ 147.88 | |||||
| 26 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 27 | W11489993 | Rail, Side (left Hand) (Replaces: W11309374) |
|
$ 21.11 | |||||
| 28 | W11658402 | Slide, Door (Replaces: W11644400) |
|
Immediately | $ 202.03 | ||||
| 29 | WPW10284684 | Adapter, Slide (left Hand) (Replaces: W10284684) |
|
Immediately | $ 37.68 | ||||
| 30 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 31 | W11692144 | Icemaker Assembly, Complete (Replaces: W11525253) |
|
Immediately | $ 379.68 | ||||
| WPW10284685 | Adapter, Slide (right Hand) (Replaces: W10284685) |
|
$ 37.94 | ||||||
| WPW10330993 | Bracket, Door (right Hand) (Replaces: W10330993) |
|
$ 149.48 | ||||||
| W11489994 | Rail, Side (right Hand) (Replaces: W11309377) |
|
$ 21.11 |
