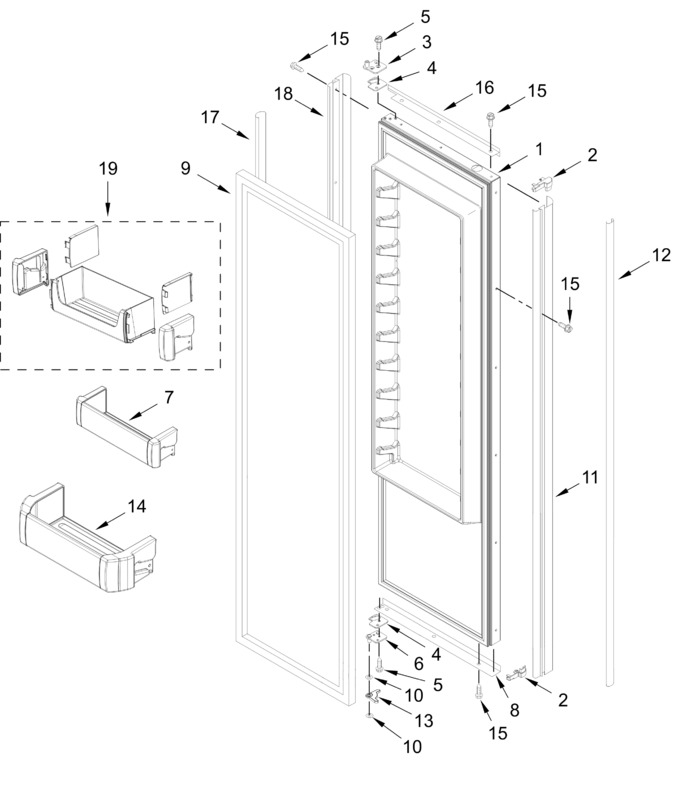

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633394		Door, Refrigerator   (Replaces: W11576687)			Immediately	$ 1,379.28
2	2207457		Trim, Corner				$ 51.41
3	W10484480		Hinge Assembly, Top				$ 57.64
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	W11627398		Bin, Shallow Door   (Replaces: W11408938)				$ 165.61
8	2309493S		Trim, Bottom Door (aluminum)		Appelez-nous	-
9	W11625077		Gasket, Door (grey)   (Replaces: W10760886)				$ 347.32
10	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 10.58
11	2309497S		Trim, Door (aluminum, Handle Side)				$ 290.72
12	2314003S		Cover, Trim (aluminum, Handle Side)				$ 157.17
13	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
14	W11627397		Bin, Gallon Door   (Replaces: W11408930)				$ 167.03
15	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
16	2309487S		Trim, Top Door (aluminum)				$ 212.65
17	2259448S		Trim, Cover (aluminum, Hinge Side)				$ 161.55
18	2309498S		Trim, Door (aluminum, Hinge Side)				$ 291.94
19	W11627396		Bin Assembly, Top Door   (Replaces: W11610618)				$ 166.63
