SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts

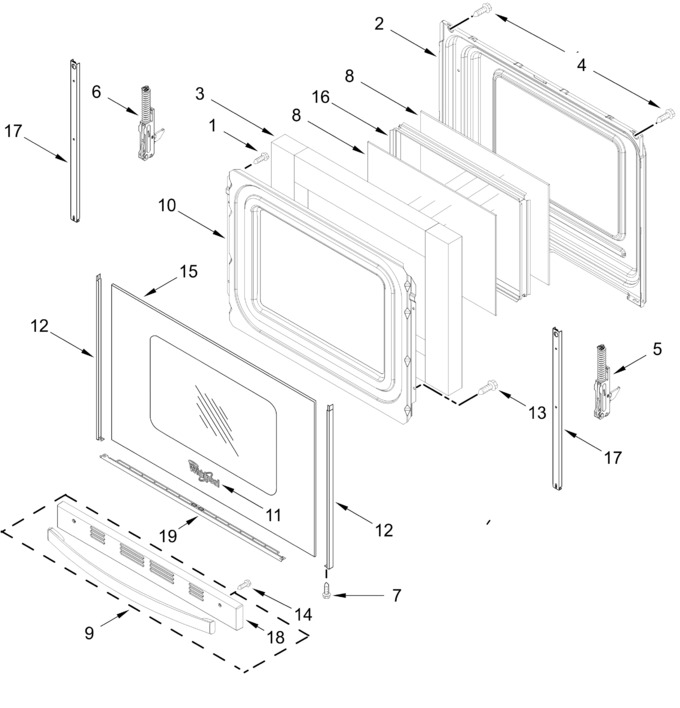

Door Parts


Drawer Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
5	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 57.42
6	WPW10440013		Hinge, Door (active, Full Glass)   (Replaces: W10440013)			Immediately	$ 57.42
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
8	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
9	W11726984		Handle And Vent Assembly (white)   (Replaces: W11353053)			Immediately	$ 167.34
10	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 209.98
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
12	WP8523172		Trim, Door Side (white, Left)   (Replaces: 8523172)			Immediately	$ 62.94
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
14	W10896982		Screw   (Replaces: W10465158)				$ 7.56
15	W11741358		Glass, Outer Door (white)   (Replaces: W11729637)			Immediately	$ 165.17
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
17	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 24.91
18	W11781573		Door Trim, Vent (white)   (Replaces: W11623351)		Appelez-nous	-
19	W11594186		Trim, Bottom Door (white)   (Replaces: W11444042)			Immediately	$ 55.23
	WP8523166		Trim, Door Side (white, Right)   (Replaces: 8523166)			Immediately	$ 75.81

    View Diagram in Separate Window       Print Part List
