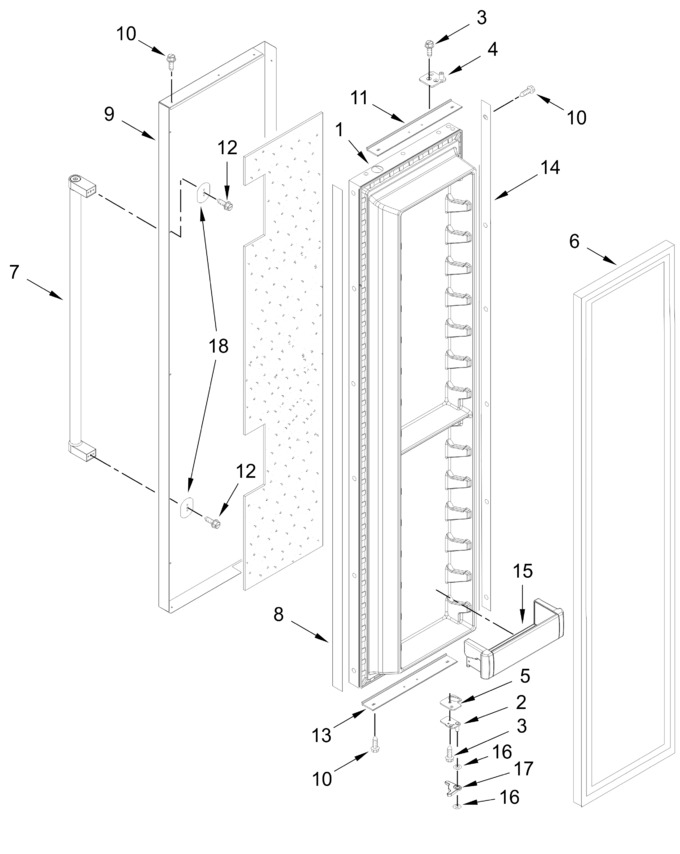

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633132		Door, Freezer   (Replaces: W11570423)		Appelez-nous	-
2	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 63.07
3	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
4	W11779146		Hinge Assembly, Top   (Replaces: W11657507)			Immediately	$ 54.42
5	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 130.37
6	W11625072		Gasket, Door (grey)   (Replaces: W10760884)				$ 388.83
7	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
8	W10758113		Spacer, Handle Side Door		Appelez-nous	-
9	W11797611		Skin, Fc Door (black Stainless)   (Replaces: W10873386)		Appelez-nous	-
10	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 8.13
11	W10758121		Spacer, Door Skin (top)		Appelez-nous	-
12	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
13	W10761935		Spacer, Door Skin (bottom)		Appelez-nous	-
14	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
15	W11627399		Bin, Shallow Door   (Replaces: W11408940)				$ 183.24
16	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 11.76
17	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 38.28
18	W10127710		Plate, Handle Door			Immediately	$ 25.94
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
