View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Air Flow Parts
Cabinet And Installation Parts
Control Panel Parts
Cooking And Cookware Parts
Door And Vent Door Parts
Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:

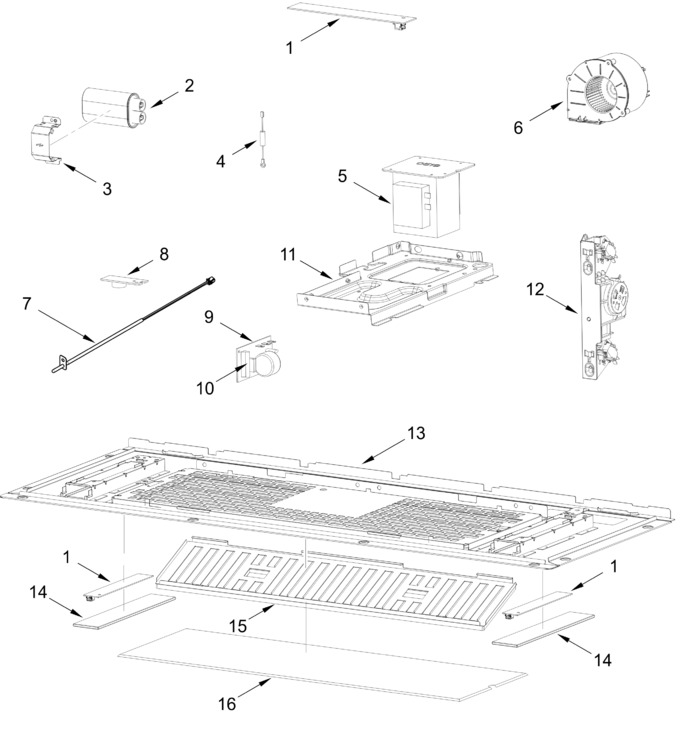

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662697 | Light Strip, Led (Replaces: W11573514) |
|
$ 39.98 | |||||
| 2 | W11213318 | Capacitor, High Voltage (Replaces: W11196080) |
|
$ 172.81 | |||||
| 3 | W11095808 | Bracket, Capacitor |
|
- | |||||
| 4 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 31.37 | ||||
| 5 | W11755317 | Transformer, High Voltage |
|
Immediately | $ 112.04 | ||||
| 6 | W11662648 | Assembly, Cooling Fan (Replaces: W11615947) |
|
Immediately | $ 102.60 | ||||
| 7 | W11707563 | Sensor, Temperature (Replaces: W11605973) |
|
$ 37.31 | |||||
| 8 | W10163422 | Thermistor |
|
$ 161.73 | |||||
| 9 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 51.19 | ||||
| 10 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 41.27 | ||||
| 11 | W11586579 | Plate, Hvt Support |
|
- | |||||
| 12 | W11662685 | Assembly, Interlock (Replaces: W11590601) |
|
Immediately | $ 75.23 | ||||
| 13 | W11706994 | Plate, Bottom |
|
- | |||||
| 14 | W11593189 | Glass, Light |
|
- | |||||
| 15 | W11707349 | Filter, Charcoal (Replaces: W11616298) |
|
Immediately | $ 20.78 | ||||
| 16 | W11707187 | Filter, Grease (Replaces: W11697096) |
|
- |
