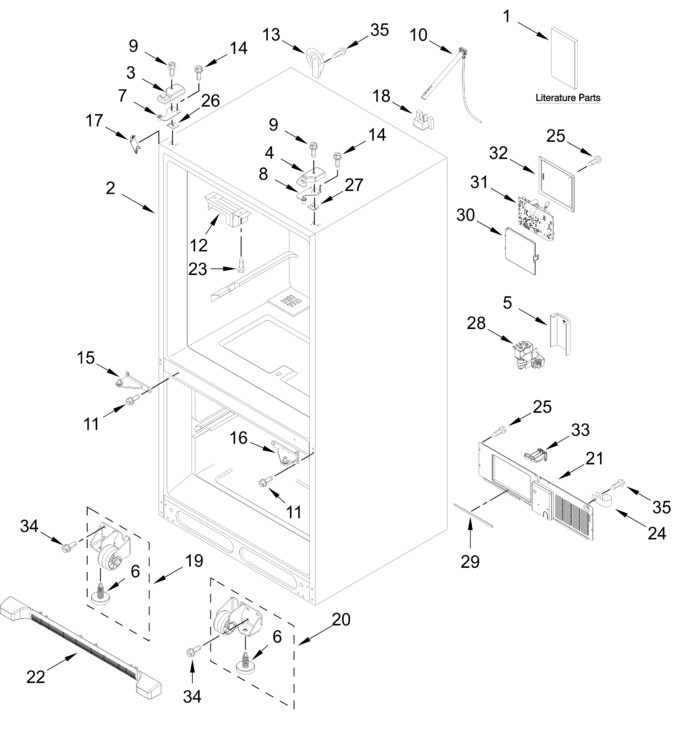

Cabinet Parts
Freezer Door Parts
Freezer Liner And Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Hinge (black, Left Hand, Includes Foil) |
|
Immediately | $ 21.00 | ||||
| 4 | WP67005956 | Cover, Hinge (black, Right Hand) (Replaces: 12962302B) |
|
$ 20.29 | |||||
| 5 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: W11456626) |
|
$ 28.73 | |||||
| 8 | W11592374 | Hinge, Top (right Hand) (Replaces: W11456625) |
|
Immediately | $ 28.71 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | W11817981 | Tube Assembly, Fill (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 82.14 | ||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11642008 | Hinge, Center (left Hand) (Replaces: W11610757) |
|
$ 21.92 | |||||
| 16 | W11642010 | Hinge, Center (right Hand) (Replaces: W11610758) |
|
$ 22.02 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 18 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 21.21 | |||||
| 19 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 21 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 22 | WPW10534153 | Grille, Toe (black, Includes Clips) (Replaces: W10534153) |
|
$ 139.11 | |||||
| 23 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 24 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 26 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 89.58 | |||||
| 27 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 90.54 | |||||
| 28 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 106.85 | ||||
| 29 | W11534848 | Gasket, Unit Cover |
|
Immediately | $ 20.11 | ||||
| 30 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 31 | WPW10317076 | Board, Hv Control (Replaces: W10317076) |
|
Immediately | $ 371.56 | ||||
| 32 | 12961602 | Cover, Control Box |
|
$ 104.57 | |||||
| 33 | W10528513 | Sweep, Dual Tube |
|
$ 39.37 | |||||
| 34 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 35 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| W11580822 | Owners Manual |
|
- | ||||||
| W11623343 | Tech Sheet |
|
- | ||||||
| W11730571 | Energy Guide |
|
- |
