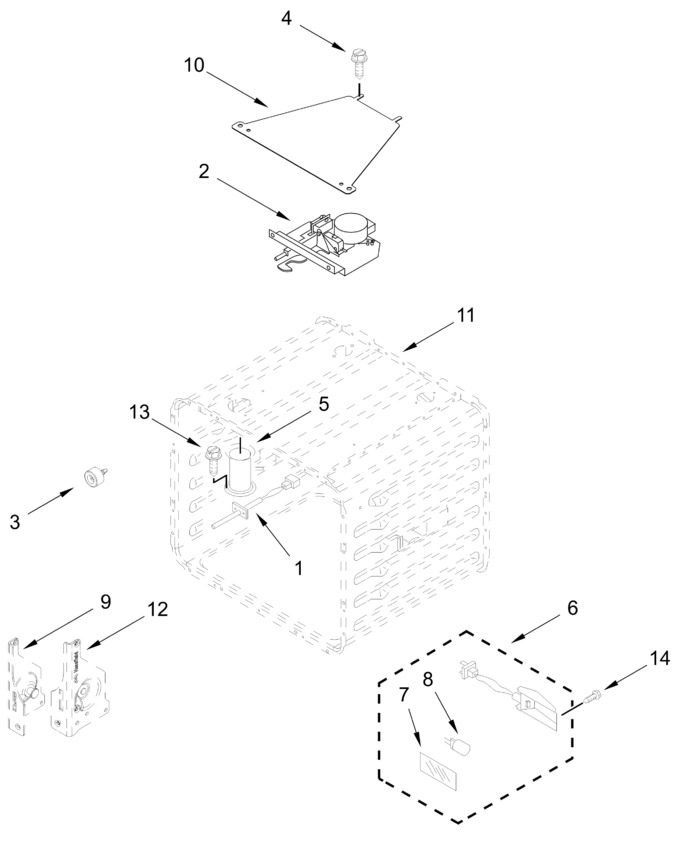

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 143.11
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 294.89
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 9.91
4	7101P42660		Screw		Appelez-nous	-
5	W10288078		Tube, Vent				$ 105.17
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 100.20
7	W10169756		Lens, Light				$ 37.97
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
9	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 69.25
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
14	4449748		Screw				$ 12.81
	W11688744		Insulation, Wrap (18 In)   (Replaces: W10282820)		Appelez-nous	-
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11688563		Insulation, Back (18 In)   (Replaces: W11529898)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
