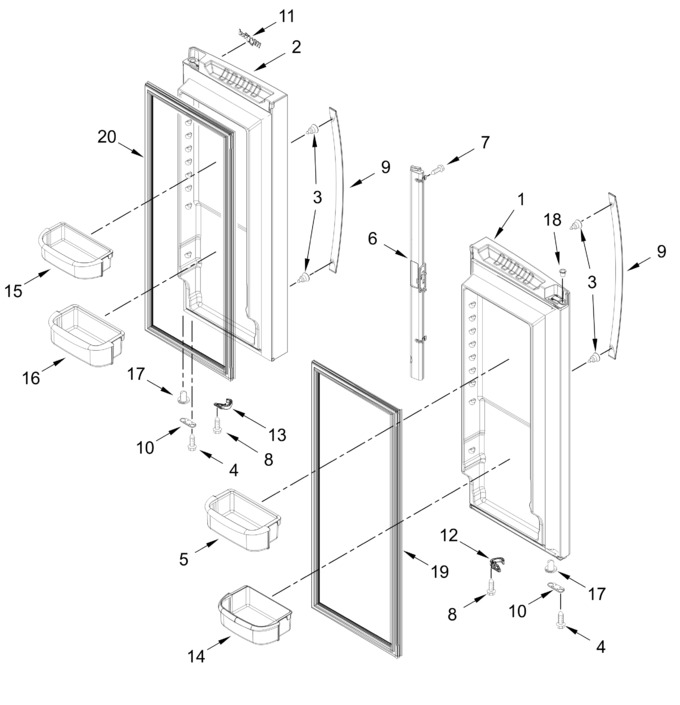

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661558		Left Door Assembly (white, Includes Door Gasket)   (Replaces: W11622643)				$ 1,071.45
2	13107885WQ		Right Door Assembly (white, Includes Door Gasket)   (Replaces: 13107885W)				$ 1,013.25
3	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 17.06
4	WP98165		Screw   (Replaces: 12990504)				$ 8.57
5	WPW10351081		Bucket, Small   (Replaces: W10351081)			Immediately	$ 82.77
6	WP12722803W		Mullion, Door (white)   (Replaces: 12722803W)			Immediately	$ 323.15
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
9	W11127179		Handle, Door (white)   (Replaces: W11101973)			Immediately	$ 190.44
10	12968202W		Stop, Door (white)				$ 69.29
11	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 87.26
12	W10918118		Latch, Door Closer (white, Left Hand)   (Replaces: W10833740)				$ 17.01
13	W10918120		Latch, Door Closer (white, Right Hand)   (Replaces: W10833738)			Immediately	$ 17.01
14	WP12918704		Bucket, Gallon (clear)   (Replaces: 12918704)			Immediately	$ 87.02
15	WPW10289497		Bucket, Gallon   (Replaces: W10289497)			Immediately	$ 81.09
16	WPW10371194		Bucket, Medium   (Replaces: W10371194)			Immediately	$ 77.23
17	WP67003638		Closer, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
18	12996601		Clip, Bushing				$ 10.05
19	W10830287		Gasket, Door (white, Left Hand)			Immediately	$ 210.34
20	W10830189		Gasket, Door (white)				$ 283.41
