Control Panel Parts

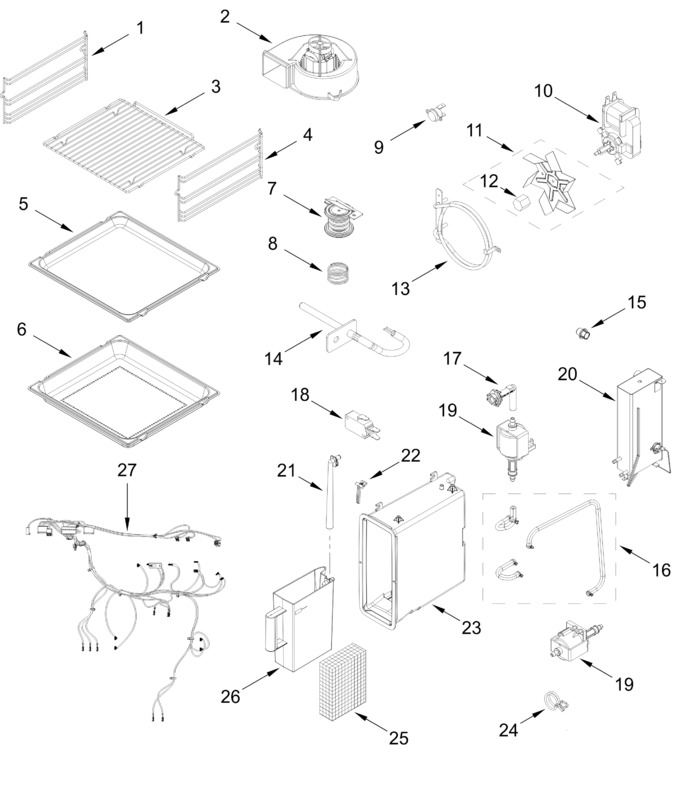

Internal Oven Parts
Oven Door Parts
Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11813948 | Grid, Rack Left Side (Replaces: W11813828) |
|
- | |||||
| 2 | W10586916 | Fan, Cooling |
|
$ 317.93 | |||||
| 3 | W11813947 | Rack, Wire Shelf (Replaces: W11813827) |
|
- | |||||
| 4 | W11813949 | Grid, Rack Right Side (Replaces: W11813830) |
|
- | |||||
| 5 | W10577820 | Tray, Bake/drip |
|
$ 318.51 | |||||
| 6 | W10577816 | Tray, Steam |
|
$ 327.49 | |||||
| 7 | W10587885 | Gasket, Air Flow |
|
- | |||||
| 8 | W10587880 | Spring, Air Flow |
|
- | |||||
| 9 | W11512073 | Thermostat (Replaces: W11510588) |
|
- | |||||
| 10 | W11512467 | Motor, Convection Fan (Replaces: W11510587) |
|
- | |||||
| 11 | W10586917 | Blade, Convection Fan (includes Nut) |
|
$ 43.36 | |||||
| 12 | W11237447 | Nut, Convection Fan (Replaces: W10781713) |
|
$ 13.25 | |||||
| 13 | WPW10493735 | Heater, Convection Element (Replaces: W10493735) |
|
Immediately | $ 99.44 | ||||
| 14 | W11353409 | Sensor, Cavity Temperature |
|
$ 74.65 | |||||
| 15 | W10588572 | Gasket, Steam Outlet |
|
$ 88.99 | |||||
| 16 | W11366439 | Tube, Silicon |
|
$ 19.80 | |||||
| 17 | W10586491 | Tubing, Connection Boiler |
|
$ 101.35 | |||||
| 18 | W11512093 | Microswitch (Replaces: W11511177) |
|
Immediately | $ 60.47 | ||||
| 19 | W10586915 | Pump, Fill And Drain |
|
$ 340.90 | |||||
| 20 | W11353847 | Heater, Boiler (Replaces: W11353385) |
|
$ 366.38 | |||||
| 21 | W10587540 | Pipe, Water Container Fill |
|
$ 25.41 | |||||
| 22 | W10586492 | Sensor, Boiler Temperature |
|
$ 62.79 | |||||
| 23 | W10586494 | Housing, Water Container |
|
$ 180.23 | |||||
| 24 | W10587851 | Clamp, Tubing |
|
- | |||||
| 25 | W10577833 | Sponge |
|
$ 220.16 | |||||
| 26 | 480123100285 | . Reservoir, Water Container |
|
- | |||||
| 27 | W11353395 | Harness, Main |
|
$ 255.64 |
