Cabinet Parts
Freezer Door Parts
Freezer Liner & Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

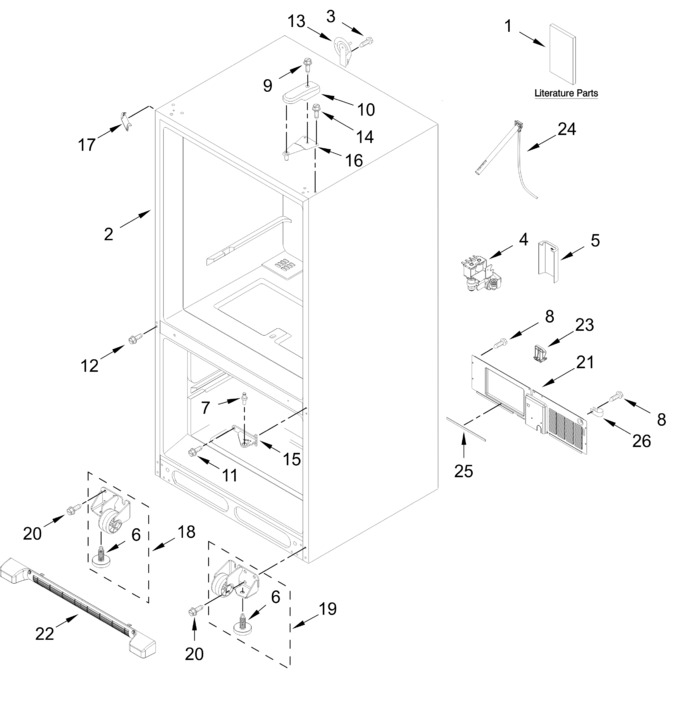

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 4 | W11519244 | Valve, Inlet (Replaces: W11446817) |
|
$ 89.72 | |||||
| 5 | W10208592 | Cover, Valve |
|
- | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 75.82 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (Replaces: W11610756) |
|
$ 69.79 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 22 | WPW10534165 | Grille Assembly (grey, Includes Clips) (Replaces: W10534165) |
|
Immediately | $ 66.30 | ||||
| 23 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 24 | W11817981 | Tube Assembly, Fill (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 91.27 | ||||
| 25 | B5759655 | Gasket (Replaces: W11534846) |
|
$ 13.03 | |||||
| 26 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| W11479841 | Owner's Manual |
|
- | ||||||
| W11644241 | Energy Guide |
|
- | ||||||
| W11312474 | Tech Sheet |
|
- |
