Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

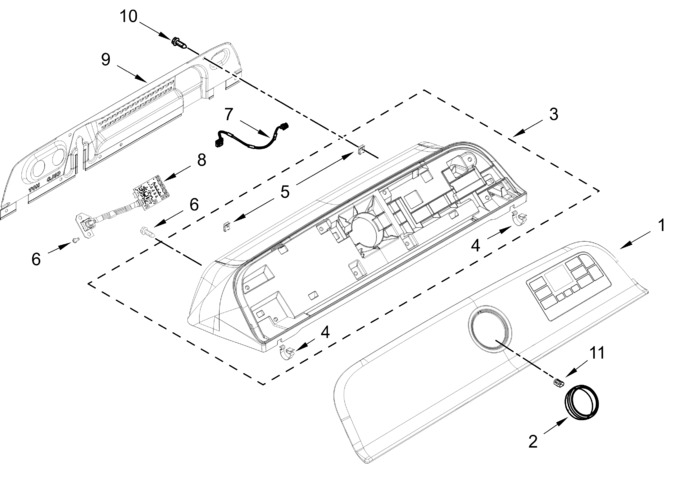

| 1 | W11798342 | Assembly, Fascia (Replaces: W11680240) |
|
Immediately | $ 416.37 | ||||
| 2 | W11790665 | Assembly, Knob (Replaces: W11663220) |
|
$ 40.74 | |||||
| 3 | W11798338 | Assembly, Console (grey) (Replaces: W11677919) |
|
$ 132.11 | |||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 5 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 7.32 | |||||
| 6 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 7 | W11797453 | Harness, User Interface (hmi) (Replaces: W11600727) |
|
$ 272.51 | |||||
| 8 | W11754929 | Encoder, Hmi |
|
- | |||||
| 9 | W11129559 | Panel, Console Rear |
|
$ 263.36 | |||||
| 10 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 11 | W11788153 | Clip, Spring (Replaces: W11778059) |
|
- |
