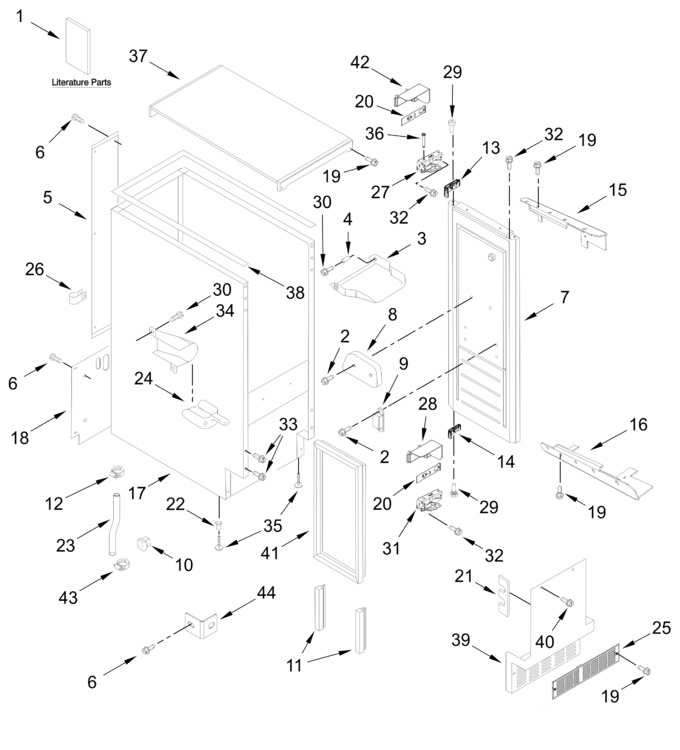

Cabinet, Door And Liner Parts


Control Panel Parts


Evaporator, Grid, And Water Parts


Optional Parts (not Included)


Pump Parts


Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	8534077		Screw (white)		Appelez-nous	-
3	W10734102		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 9.93
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
7	W11346787		Door (black)   (Replaces: W11263351)				$ 799.91
8	W11309649		Cam,door		Appelez-nous	-
9	W11223751		Assembly, Magnetic Catch   (Replaces: W10529250)				$ 56.16
10	W10136999		Nut, Push-in		Appelez-nous	-
11	W11165597		Gasket, Bottom		Appelez-nous	-
12	W10861184		Clamp, Hose   (Replaces: 489505)				$ 59.31
13	W11309752		Sidecap, Top (black)		Appelez-nous	-
14	W11309756		Sidecap, Bottom(black)		Appelez-nous	-
15	W11243907		Bracket, Custom Panel Top				$ 106.52
16	W11223897		Bracket, Custom Panel Bottom				$ 114.71
17	ARI202CD75352B38E8268AED36B033B1B1D		Cabinet And Liner (not Serviced)		Appelez-nous	-
18	W11267679		Cover, Unit		Appelez-nous	-
19	W11788665		Screw (black)   (Replaces: 8534075)				$ 11.49
20	W11257325		Cover Cap, Hinge				$ 20.04
21	W11546717		Pad, Foam   (Replaces: W11505640)		Appelez-nous	-
22	3400240		Nut		Appelez-nous	-
23	W11790743		Tube, Bin To Pump   (Replaces: W11711889)		Appelez-nous	-
24	W11420408		Scoop   (Replaces: W10493422)				$ 25.75
25	W11284404		Grill, Auxillary				$ 229.72
26	W11316608		Clip, Hose   (Replaces: W11050231)		Appelez-nous	-
27	W11176752		Hinge Assembly, Top		Appelez-nous	-
28	W11243473		Cover, Bottom Hinge (black)				$ 62.54
29	348689		Screw				$ 70.26
30	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 7.29
31	W11176753		Hinge Assembly, Bottom		Appelez-nous	-
32	W10495264		Screw (black)				$ 9.72
33	WP273556		Screw   (Replaces: 357640)			Immediately	$ 7.59
34	2185927		Holder, Scoop				$ 80.16
35	8193716		Leg, Leveling   (Replaces: 3374849)			Immediately	$ 80.06
36	W11212764		Pin, Limit		Appelez-nous	-
37	W11246183		Panel, Top (black)				$ 453.62
38	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
39	W11197601		Grille, Front (black)				$ 108.54
40	W10531302		Screw (black)		Appelez-nous	-
41	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 257.38
42	W11243472		Cover, Top Hinge(black)				$ 62.54
43	W10670799		Clamp, Hose			Immediately	$ 22.38
44	W11223901		Bracket, Cabinet				$ 31.88
	W11686966		Owners Manual		Appelez-nous	-
