Cabinet Parts


Cabinet Trim Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Freezer Shelf Parts


Lower Unit And Tube Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner And Control Parts


Refrigerator Shelf Parts


Top Grille And Unit Cover Parts


Upper Unit Parts

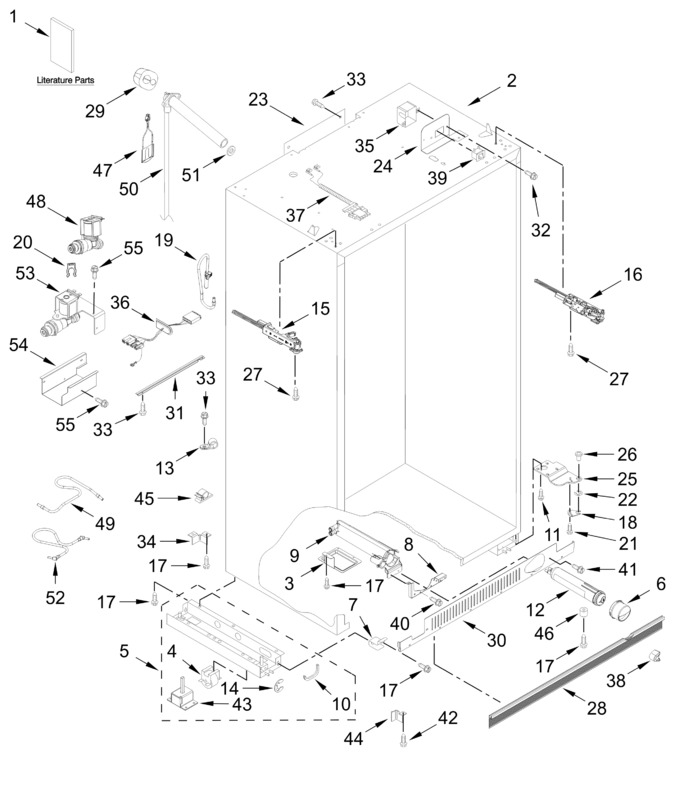

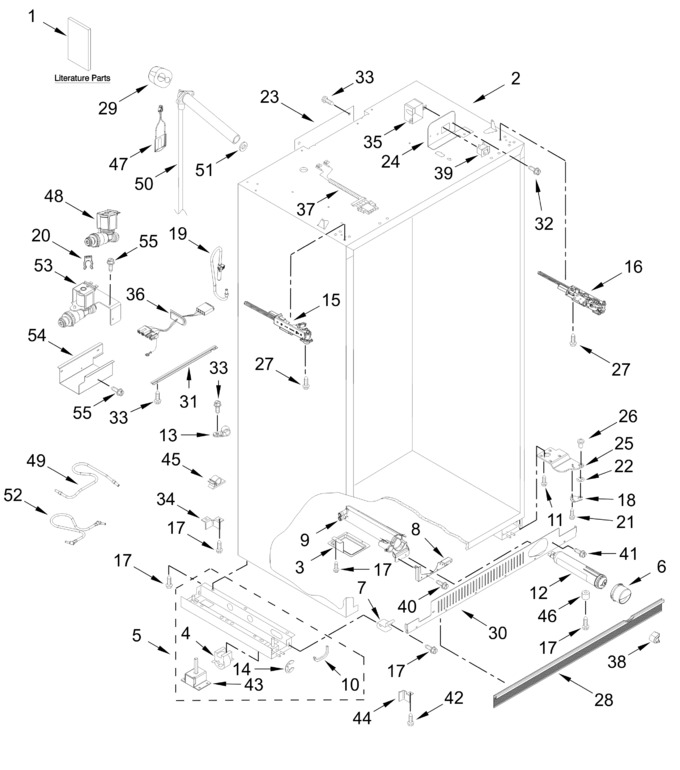

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	ARIF06CCFE9BD0F0FDB975806FEDA58D816		Cabinet (not Serviced)		Appelez-nous	-
3	2318189		Tray, Filter Drip				$ 148.73
4	WPW10138054		Roller Assembly   (Replaces: W10138054)				$ 45.34
5	W10860229		Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275)				$ 381.83
6	W11238395		Cap, Water Filter (black)   (Replaces: W10797527)			Immediately	$ 50.68
7	W10839844		Bracket, Grill Mounting   (Replaces: 2307640)				$ 43.26
8	W11755873		Bracket, Filter   (Replaces: W11695780)				$ 80.33
9	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 270.85
10	2307584		Grommet, Crossover Tube				$ 23.40
11	3400525		Screw				$ 12.83
12	W10121145		Filter, Water		Appelez-nous	-
13	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
14	2006841		Ring, Retainer				$ 92.66
15	W11791409		Hinge Assembly, Top (left Hand)   (Replaces: W11443675)		Appelez-nous	-
16	W11791410		Hinge Assembly, Top (right Hand)   (Replaces: W11443676)				$ 455.83
17	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
18	WP2004994		Lock, Bushing   (Replaces: 2004994)			Immediately	$ 8.39
19	W11690636		Waterline, Cust Connect   (Replaces: W10577944)				$ 130.54
20	W10782423		Locking Ring (1/4")				$ 24.37
21	W11769878		Screw   (Replaces: 3400230)				$ 12.77
22	WP489236		Ring, Bushing Retaining   (Replaces: 2005008)			Immediately	$ 12.78
23	2215612		Cover, Air Duct		Appelez-nous	-
24	W11788120		Bracket, Rocker Switch (left Hand)   (Replaces: W11780481)		Appelez-nous	-
25	W10527053		Hinge, Bottom (left Hand)   (Replaces: 2006779)				$ 137.73
26	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 90.72
27	W11777487		Screw   (Replaces: W11757187)				$ 29.86
28	WPW10188549		Skirt, Grille (black)   (Replaces: W10188549)				$ 144.20
29	W11490590		Cover, Fill Tube		Appelez-nous	-
30	W11739147		Grille, Bottom (black)   (Replaces: W11695787)			Immediately	$ 212.42
31	2320559		Support, Valve				$ 88.79
32	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
33	W11624204		Screw   (Replaces: 486194)				$ 14.72
34	2006617		Bracket, Base Support (rear)		Appelez-nous	-
35	W11756944		Cover, Switch   (Replaces: W11695310)		Appelez-nous	-
36	W11479397		Wire Assembly, Water Valve				$ 78.74
37	W10780213		Wire Assembly, Switch				$ 130.91
38	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
39	W11396033		Switch, Rocker   (Replaces: W10847848)			Immediately	$ 37.30
40	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
41	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
42	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
43	2005032		Leveler, Adjustable			Immediately	$ 200.07
44	2006616		Bracket, Support Base (left Hand, Front)				$ 91.53
45	W10663352		Clip				$ 21.91
46	2005433		Spacer, Door Skin (top)				$ 23.33
47	W11798413		Heater, Fill Tube   (Replaces: W11771383)		Appelez-nous	-
48	W11225845		Valve, Solenoid   (Replaces: W10574769)			Immediately	$ 198.88
49	W10619899		Tube, Filter Inlet				$ 46.24
50	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
51	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
52	W10635851		Tube, Filter Outlet				$ 88.57
53	W11246413		Valve, Isolation (no Flow Washer)   (Replaces: W10578757)			Immediately	$ 198.88
54	W10619291		Shield, Valve Electrical		Appelez-nous	-
55	00487294		Screw   (Replaces: 487294)				$ 175.09
	W11291138		Switch, Rocker   (Replaces: W10847852)			Immediately	$ 36.67
	W11761065		Energy Guide		Appelez-nous	-
	W10782424		Locking Ring(5/16")		Appelez-nous	-
	W11494194		Tech Sheet		Appelez-nous	-
	W11776014		Installation Instructions		Appelez-nous	-
	W11771553		Owners Manual		Appelez-nous	-
	W11788118		Bracket, Rocker Switch (right Hand)   (Replaces: W11780475)		Appelez-nous	-
	2006556		Bracket, Support Base (right Hand, Front)				$ 37.20
	W10860448		Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
	WP2006780		Hinge, Bottom (right Hand)   (Replaces: 2006780)				$ 299.33
	ARI744A39619562C01DE39E694D1CE8F7D9		(freezer)		Appelez-nous	-
	ARIC467EA2065EBD6EE51D04A55E53CAB77		(refrigerator)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
