Cabinet Parts
Freezer Door Parts
Freezer Liner And Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

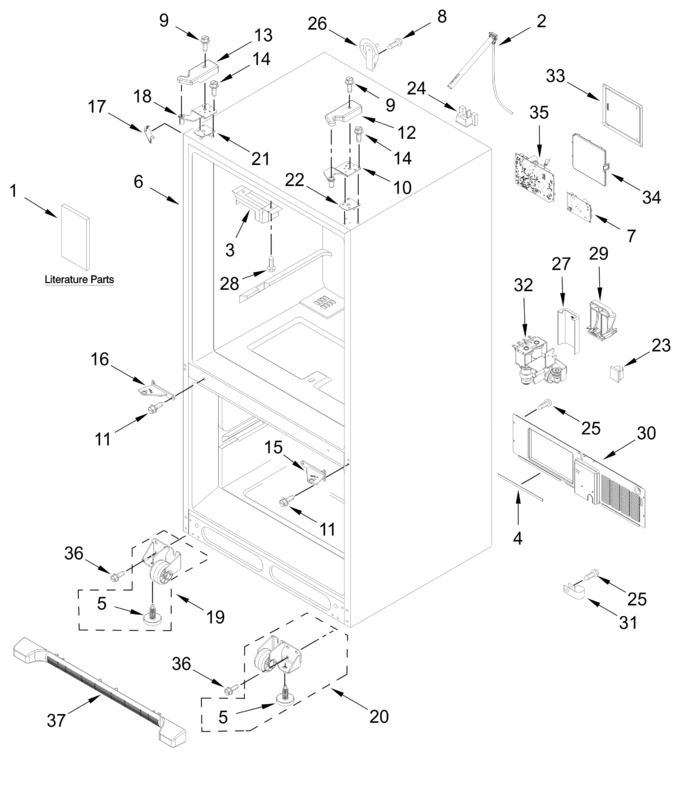

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11817981 | Tube Assembly, Fill (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 82.14 | ||||
| 3 | W11024160 | Block, Pivot (Replaces: W10120087) |
|
$ 17.98 | |||||
| 4 | W11534848 | Gasket, Unit Cover |
|
Immediately | $ 20.11 | ||||
| 5 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 6 | ARI2948F547D7C4C1B6CA0878B04EDFC4EF | Cabinet (not A Servicable Part) |
|
- | |||||
| 7 | WPW10356039 | Control, Electronic (power Supply) (Replaces: W10356039) |
|
Immediately | $ 339.34 | ||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 9 | 12992603 | Screw |
|
$ 9.30 | |||||
| 10 | W10210891 | Hinge, Top (right Hand) |
|
$ 78.10 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 13.25 | |||||
| 12 | W10153131 | Cover, Top Hinge (black, Right Hand) |
|
- | |||||
| 13 | W10892762 | Cover, Top Hinge (black, Left Hand) |
|
$ 17.60 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11747903 | Hinge, Center (left Hand) (Replaces: W11610760) |
|
$ 50.69 | |||||
| 16 | W11747904 | Hinge, Center (right Hand) (Replaces: W11610761) |
|
$ 50.69 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 18 | W10892768 | Hinge, Top (left Hand) |
|
$ 68.84 | |||||
| 19 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 21 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 89.58 | |||||
| 22 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 90.54 | |||||
| 23 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 7.35 | |||||
| 24 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 21.21 | |||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 28 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 29 | W10528513 | Sweep, Dual Tube |
|
$ 39.37 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 32 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 106.85 | ||||
| 33 | 12961602 | Cover, Control Box |
|
$ 104.57 | |||||
| 34 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 35 | WPW10120827 | Control, Electronic (Replaces: W10120827) |
|
Immediately | $ 339.08 | ||||
| 36 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 37 | WPW10534153 | Grille, Toe (black, Includes Clips) (Replaces: W10534153) |
|
$ 139.11 | |||||
| W11665551 | Tech Sheet |
|
- | ||||||
| W11789109 | Energy Guide |
|
- | ||||||
| W11468670 | Use And Care Guide |
|
- |
