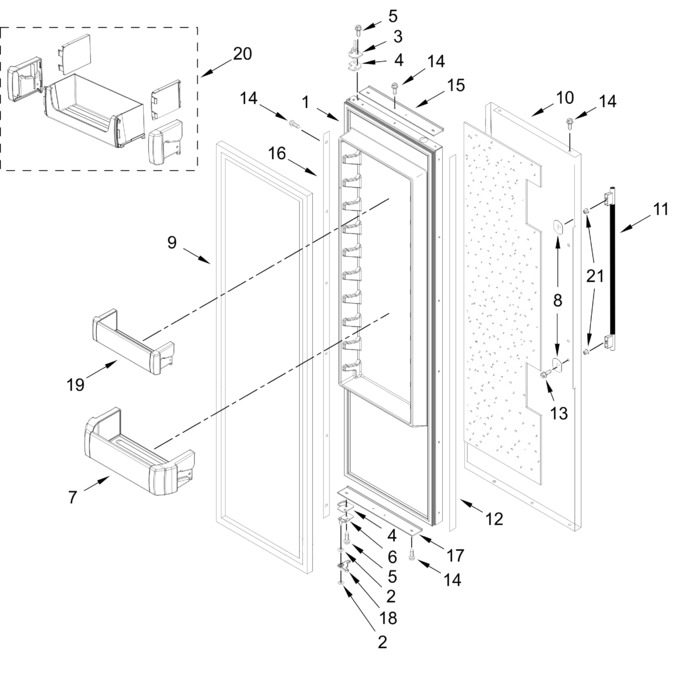

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11633393		Door, Refrigerator   (Replaces: W11576682)			Immediately	$ 1,303.41
2	WP2006346		Washer, Door Bearing   (Replaces: 2006346)			Immediately	$ 10.58
3	W11724512		Leaf Assembly, Hinge (top)   (Replaces: 2266854)				$ 281.25
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2302878		Hinge Assembly, Bottom			Immediately	$ 81.91
7	W11408929		Bin, Gallon Door				$ 165.10
8	W10127710		Plate, Handle Door			Immediately	$ 23.35
9	W11627244		Gasket, Door (grey)   (Replaces: W10764832)				$ 340.17
10	W11819008		Skin, Rc Door (black Ore)   (Replaces: W11737554)		Appelez-nous	-
11	W11777492		Handle, Door (black Ore)   (Replaces: W11737009)				$ 243.95
12	W10758113		Spacer, Handle Side Door		Appelez-nous	-
13	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
14	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
15	W10761896		Spacer, Door Skin (top)		Appelez-nous	-
16	W10756209		Spacer, Hinge Side Door		Appelez-nous	-
17	W10761936		Spacer, Door Skin Bottom		Appelez-nous	-
18	W11700297		Cover, Bottom Gap   (Replaces: W10482554)			Immediately	$ 34.45
19	W11408937		Bin, Shallow Door				$ 163.76
20	W11631253		Door Bin Assembly, Top   (Replaces: W11610620)				$ 123.52
21	W11157086		Stud, Mounting   (Replaces: W11049903)			Immediately	$ 7.98
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-
