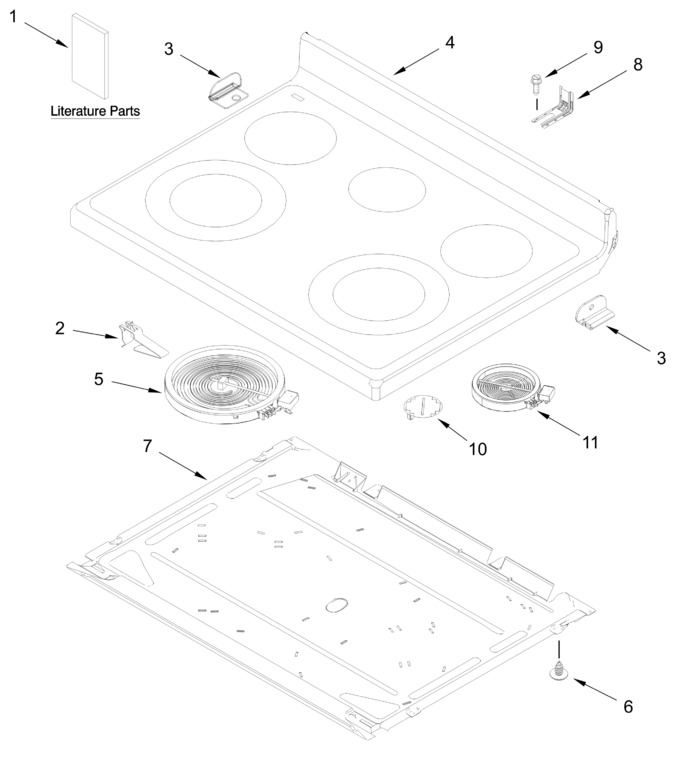

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 13.36
3	W10607641		Bracket, Cooktop (left)				$ 30.17
4	W11719713		Cooktop (white)   (Replaces: W11629476)				$ 807.29
5	W11517959		Element, (dual 3000w)   (Replaces: W11282542)			Immediately	$ 132.01
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W11640572)			Immediately	$ 129.14
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11706247		Element, Warm Zone   (Replaces: W11668631)			Immediately	$ 120.55
11	W11171119		Element (1200w)   (Replaces: W10248261)			Immediately	$ 213.20
	W11776507		Tech Sheet		Appelez-nous	-
	W11781571		Main, Harness   (Replaces: W11765580)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11618614		Quick Start Guide		Appelez-nous	-
	W11617173		Owners Manual		Appelez-nous	-
	W11598759		Harness, Warm Zone		Appelez-nous	-
	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 77.70
	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 35.70
	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
