SELECT A DIAGRAM

Cabinet, Door And Liner Parts


Control Panel Parts


Evaporator, Grid, And Water Parts


Optional Parts


Pump Parts


Unit Parts

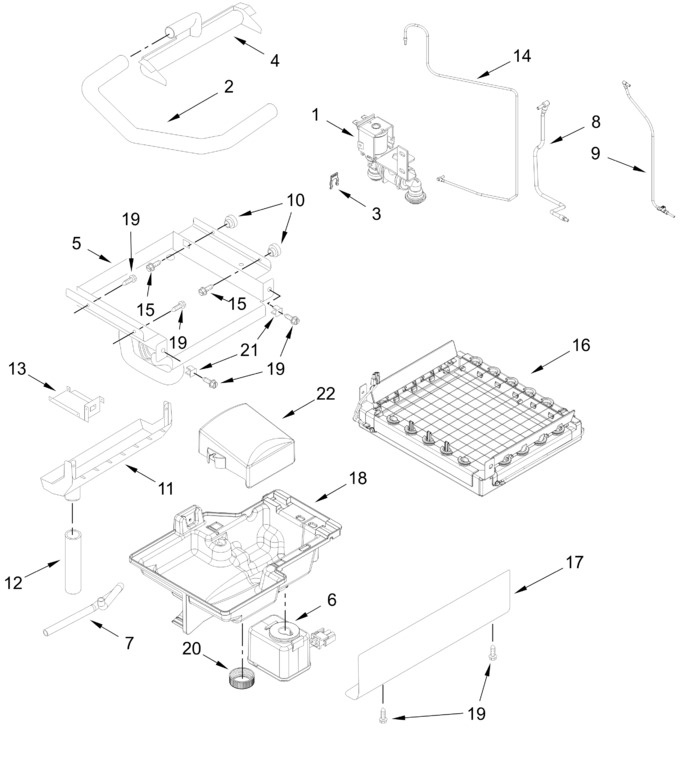

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10897719		Valve, Water (includes Regulator)   (Replaces: W10870921)			Immediately	$ 208.84
2	W10863947		Tube, Pump   (Replaces: W10772963)				$ 78.70
3	W10782423		Locking Ring (1/4")				$ 21.93
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 78.70
5	W11748089		Evaporator   (Replaces: W11703764)		Appelez-nous	-
6	W11542868		Pump, Reservoir Drain   (Replaces: W11439192)			Immediately	$ 131.45
7	W11097809		Tube, Reservoir Drain   (Replaces: W10539379)				$ 33.71
8	W11751967		Waterline, Reservoir   (Replaces: W11543901)		Appelez-nous	-
9	W11690162		Tube, Inlet   (Replaces: W11257051)				$ 110.39
10	836667		Spacer		Appelez-nous	-
11	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 169.51
12	W11033204		Tube, Water Slide   (Replaces: W10635836)			Immediately	$ 60.25
13	2208427		Bracket, Evaporator Grid		Appelez-nous	-
14	W11751968		Waterline, Valve   (Replaces: W11543903)		Appelez-nous	-
15	3400886		Screw (stainless)				$ 5.65
16	W10919199		Grid Assembly   (Replaces: W10783275)				$ 351.83
17	W10493888		Cover, Grid		Appelez-nous	-
18	W11614101		Reservoir, Water   (Replaces: W11507345)				$ 60.75
19	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 7.29
20	W11023835		Cap, Drain   (Replaces: W10555398)				$ 29.79
21	WP3400909		Grommet, Screw   (Replaces: 3400909)				$ 7.15
22	W10512292		Cover, Bracket				$ 98.71

    View Diagram in Separate Window       Print Part List
