SELECT A DIAGRAM

Burner Box And Griddle Parts


Chassis Parts


Cooktop, Burner And Grate Parts


Internal Oven Parts


Optional Parts (not Included)


Oven Door Parts


Oven Parts


Venting Parts

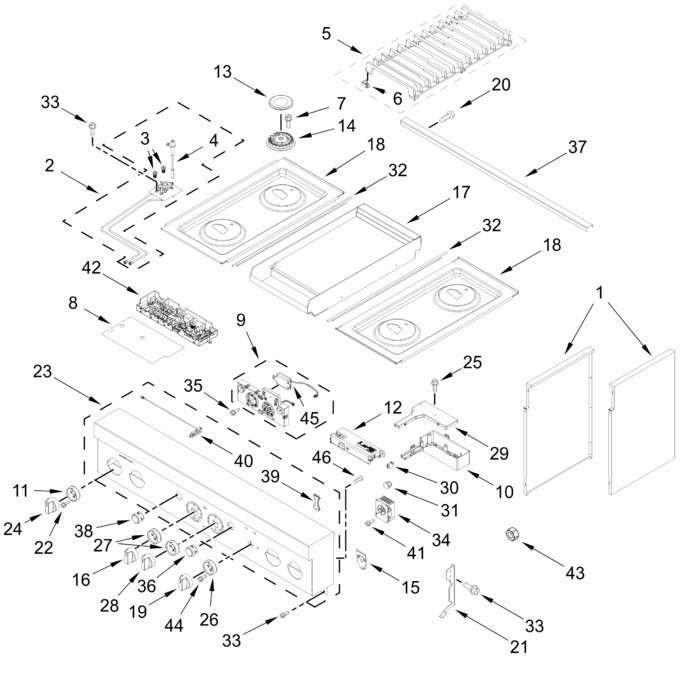

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333179		Panel, Left Cabinet Side   (Replaces: W11106881)				$ 377.72
2	W11333305		Orifice Holder Assembly   (Replaces: W10892793)				$ 112.85
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 58.69
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 21.13
5	W11516449		Grate Assembly (black, Left)   (Replaces: W11291180)				$ 238.55
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 11.31
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 11.45
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 117.51
9	W11492292		Interface, User   (Replaces: W11436330)				$ 516.55
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel (stainless)   (Replaces: W11090284)				$ 96.18
12	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 161.90
13	W11328971		Cap, Burner (black, Set Of 4)   (Replaces: W11121391)				$ 156.06
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 225.62
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.59
16	W11368944		Knob, Oven Temperature (stainless)   (Replaces: W11343043)		Appelez-nous	-
17	W11602621		Griddle Module Assembly   (Replaces: W11505236)			Immediately	$ 1,392.32
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 451.81
19	W11317536		Knob, Griddle (stainless)   (Replaces: W10891923)				$ 133.77
20	7101P33860		Screw		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 68.35
22	W11509770		Screw   (Replaces: W11328357)				$ 12.81
23	W11444077		Panel, Cooktop   (Replaces: W10878253)				$ 846.17
24	W11791681		Knob, Dual (stainless)   (Replaces: W11560135)		Appelez-nous	-
25	7101P62460		Screw		Appelez-nous	-
26	W11317890		Bezel, Griddle (stainless)   (Replaces: W11104967)				$ 98.60
27	W11317892		Bezel, Oven (stainless)   (Replaces: W11042375)				$ 99.67
28	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 138.80
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W10116114		Light, Indicator Housing			Immediately	$ 84.21
31	W10294500		Lens, Indicator Light				$ 6.92
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 320.87
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.16
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 21.30
37	W11156416		Trim, Island				$ 224.38
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 21.43
39	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 98.42
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 206.03
41	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
42	W11371064		Manager, Appliance (powermax)   (Replaces: W11100269)				$ 506.84
43	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.77
44	W10674068		Screw				$ 21.95
45	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 72.84
46	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 206.51
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	W11516462		Grate Assembly (black, Right)   (Replaces: W11291182)				$ 238.56
	W11238756		Igniter			Immediately	$ 61.16
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	W11333312		Panel, Right Cooktop   (Replaces: W11038253)				$ 427.73
	W11333309		Orifice Holder Assembly   (Replaces: W10892730)				$ 110.66
	W10892440		Orifice, Main (7.2k)				$ 89.87
	W11333306		Orifice Holder Assembly   (Replaces: W10892494)			Immediately	$ 115.18
	W10892418		Orifice, Main (15.4k)			Immediately	$ 92.73
	W11333303		Panel, Right Cabinet Side   (Replaces: W11106880)				$ 379.27
	W10892429		Orifice, Simmer (2.0k)				$ 89.87
	W10130759		Bracket, Moving Console (right)				$ 68.35
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 67.52
	ARIF51CD619278F411F0D01263DCFA5380D		(assembly Breakdown Shown On Burner Box Page)		Appelez-nous	-
	ARI58AF8D252016DDED824FB66FD9161A41		(for 4 Cooktop Burners)		Appelez-nous	-
	ARI8EE4F5E59D536F62986D20F6E6C7927B		(left Front, Left Rear, Right Front)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11620688		Orifice Holder Assembly   (Replaces: W11505833)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
