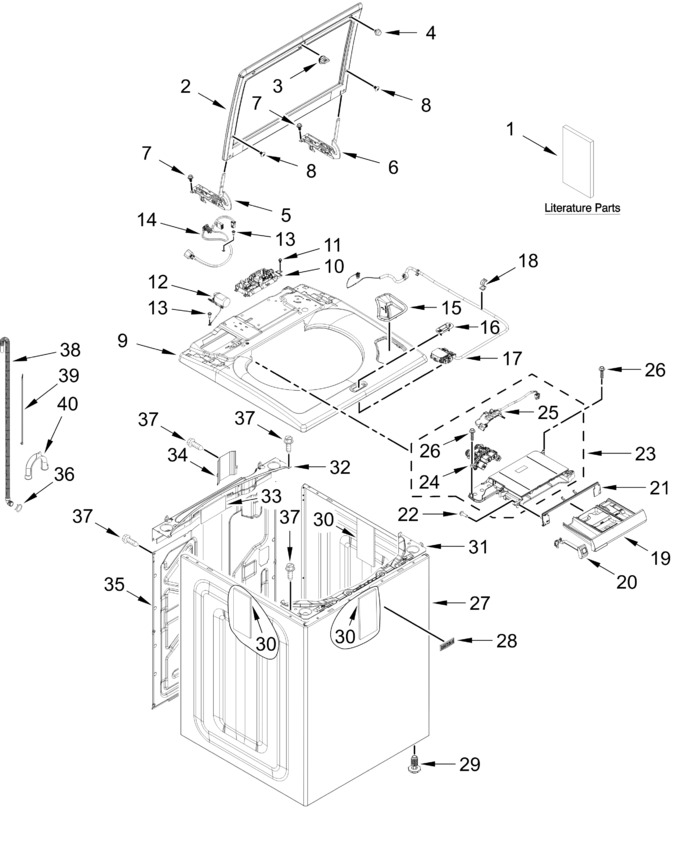

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11797450 | Assembly, Lid (glass, Dark Grey) (Replaces: W11710910) |
|
$ 257.44 | |||||
| 3 | W11789818 | Assembly, Strike (Replaces: W11676106) |
|
$ 24.41 | |||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 20.97 | ||||
| 5 | W11789527 | Hinge, Lid (left) (Replaces: W11701943) |
|
Immediately | $ 79.12 | ||||
| 6 | W11789526 | Hinge, Lid (right) (Replaces: W11701944) |
|
Immediately | $ 76.79 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.26 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 13.49 | |||||
| 9 | W11423769 | Top (white) (Replaces: W11126896) |
|
$ 346.67 | |||||
| 10 | W11805172 | Machine And Motor Control Unit Assembly (Replaces: W11678113) |
|
$ 361.01 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 12 | W11638178 | Assembly, Line Filter (Replaces: W11296733) |
|
$ 78.05 | |||||
| 13 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 37.36 | ||||
| 15 | W11175757 | Bleach Dispenser (white) |
|
$ 27.22 | |||||
| 16 | W11789528 | Bezel, Lid Lock (white) (Replaces: W11468804) |
|
$ 22.78 | |||||
| 17 | W11670519 | Assembly, Lid Lock Latch (Replaces: W11368616) |
|
Immediately | $ 68.06 | ||||
| 18 | W11789525 | Clip, Harness (Replaces: W11655398) |
|
- | |||||
| 19 | W11805173 | Dispenser Drawer Assembly (white) (Replaces: W11691784) |
|
- | |||||
| 20 | W11789813 | Faucet Switch Assembly (white) (Replaces: W11730985) |
|
- | |||||
| 21 | W11375988 | Dispenser Bezel Assembly (white) |
|
- | |||||
| 22 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 23 | W11614513 | Dispenser Housing And Inlet Valve Assembly (Replaces: W11570268) |
|
Immediately | $ 179.44 | ||||
| 24 | W11614515 | Valve, Water Inlet (Replaces: W11528768) |
|
Immediately | $ 159.53 | ||||
| 25 | W11524850 | Harness, Valve |
|
$ 62.33 | |||||
| 26 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 27 | W10677265 | Cabinet (white) |
|
$ 459.94 | |||||
| 28 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 29 | WPW10687506 | Leveling Foot Assembly (Replaces: W10687506) |
|
Immediately | $ 23.46 | ||||
| 30 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 21.04 | ||||
| 31 | W11381327 | Channel, Top Front |
|
Immediately | $ 70.65 | ||||
| 32 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 33 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.54 | ||||
| 34 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 35 | W11417171 | Panel, Rear |
|
$ 249.90 | |||||
| 36 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 37 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 38 | W11764699 | Assembly, Outer Drain Hose (Replaces: W11703202) |
|
$ 36.89 | |||||
| 39 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 40 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| W11646252 | Owners Manual |
|
- | ||||||
| W11678315 | Energy Guide |
|
- | ||||||
| W11762163 | Quick Start Guide |
|
- |
