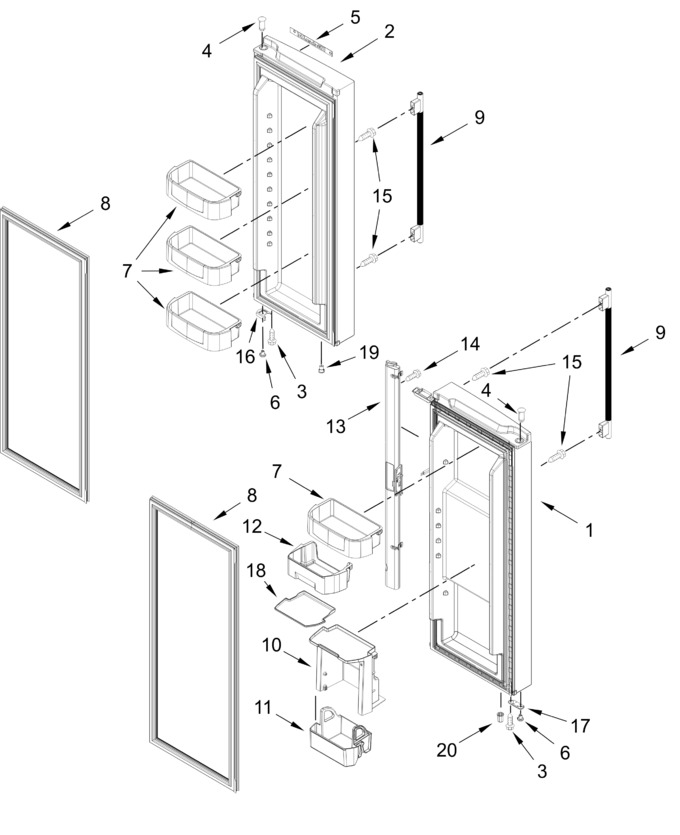

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10858415		Refrigerator Door Assembly (stainless, Left Hand)   (Replaces: W10858415)				$ 824.16
2	LW10858417		Right Door Assembly, Stainless (includes Door Gasket)   (Replaces: W10858417)				$ 756.26
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
4	W11544568		Thimble, Top   (Replaces: W10366270)			Immediately	$ 12.56
5	W11759445		Badge (smoked Chrome)   (Replaces: W11688412)			Immediately	$ 45.29
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 6.80
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 73.43
8	WPW10460580		Gasket, Door (grey)   (Replaces: W10413468)			Immediately	$ 253.97
9	W11759446		Door Handle (stainless)   (Replaces: W11682895)			Immediately	$ 128.15
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 93.42
11	WPW10411219		Bin, Fresh & Ready   (Replaces: W10411219)			Immediately	$ 86.35
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 61.22
13	WPW10624450		Mullion Assembly (grey)   (Replaces: W10624450)			Immediately	$ 224.71
14	W10854958		Screw   (Replaces: 12990302)				$ 7.11
15	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 33.25
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
18	WPW10317192		Bin, Door Mat   (Replaces: W10317192)				$ 78.59
19	W11189115		Thimble, Top (black)   (Replaces: W10334042)			Immediately	$ 11.44
20	WP67002731		Bushing, Door (black)   (Replaces: 12028601B)			Immediately	$ 7.42
