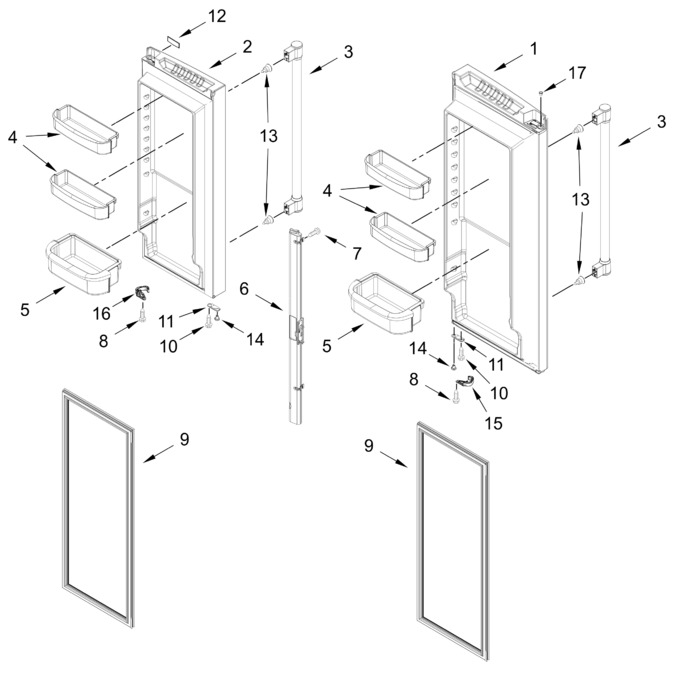

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661563		Left Door Assembly (stainless)   (Replaces: W11622647)				$ 967.19
2	W11435333		Right Door Assembly (stainless)   (Replaces: W11377201)				$ 963.59
3	W11720842		Handle Assembly (stainless)   (Replaces: W11657843)				$ 161.49
4	WPW10324005		Bin, Shelf (medium)   (Replaces: W10324005)				$ 69.98
5	WPW10289494		Bin, Shelf (gallon)   (Replaces: W10289494)				$ 78.82
6	WP12722803AP		Mullion, Door (grey)   (Replaces: 12722803APN)				$ 170.11
7	W11311945		Screw   (Replaces: 12990204)				$ 13.25
8	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
9	W10830162		Gasket, Door (grey)			Immediately	$ 223.74
10	WP98165		Screw   (Replaces: 12990504)				$ 7.71
11	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 13.91
12	W11648754		Badge   (Replaces: W11628148)			Immediately	$ 38.16
13	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.35
14	WP12028505AP		Closer, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
15	W10918008		Latch, Door Closer (grey, Left Hand)   (Replaces: W10833741)				$ 15.88
16	W10918010		Latch, Door Closer (grey, Right Hand)   (Replaces: W10833739)			Immediately	$ 15.88
17	12996601		Clip, Bushing				$ 10.05
