Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

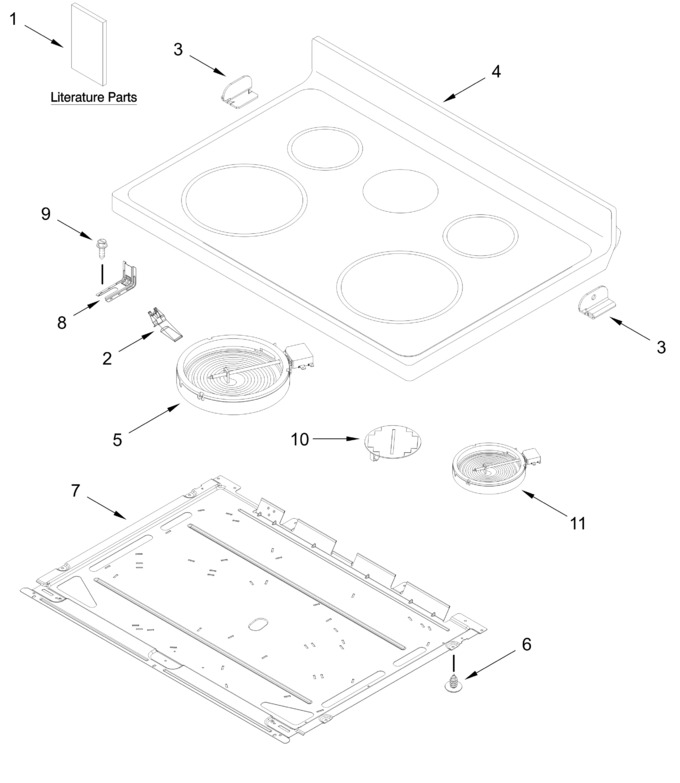

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 4 | W11183708 | Cooktop (black) (Replaces: W11034836) |
|
Immediately | $ 670.05 | ||||
| 5 | W10823727 | Element, Dual (3000w) (Replaces: W10711900) |
|
Immediately | $ 308.37 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 129.14 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 10 | W11735483 | Element, Warm Zone (Replaces: W11684444) |
|
- | |||||
| W11676972 | Quick Start Guide |
|
- | ||||||
| W11652315 | Owners Manual |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11796886 | Harness, Main (Replaces: W11777062) |
|
- | ||||||
| W11598759 | Harness, Warm Zone |
|
- | ||||||
| W11517959 | Element, (dual 3000w) (Replaces: W11282542) |
|
Immediately | $ 132.01 | |||||
| W11838447 | Harness, Hidden Bake (Replaces: W11172528) |
|
$ 24.32 | ||||||
| W11825100 | Harness, Cooktop (right) (Replaces: W11134845) |
|
$ 77.70 | ||||||
| W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
$ 35.70 | ||||||
| W11523158 | Tech Sheet |
|
- | ||||||
| W10607642 | Bracket, Cooktop (right) |
|
- | ||||||
| W10183541 | Clip, Spring Steel |
|
- | ||||||
| W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 203.06 | |||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| 3196896 | Clip, Wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- |
