Cabinet, Door And Liner Parts
Control Panel Parts
Evaporator, Grid, And Water Parts
Optional Parts
Pump Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

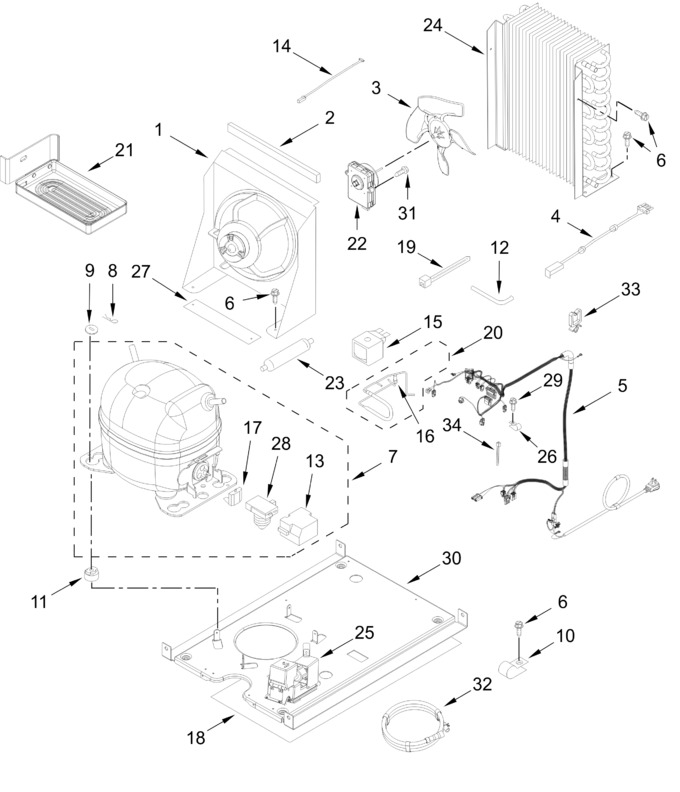

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mounting (Replaces: 2185532) |
|
$ 91.96 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 87.56 | ||||
| 4 | WP2187629 | Jumper, Wire (condenser Fan) (Replaces: 2187629) |
|
$ 119.32 | |||||
| 5 | W11123917 | Assembly, Cabinet Wire (Replaces: W10917834) |
|
$ 186.41 | |||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 7 | W11735041 | Compressor (Replaces: W10536005) |
|
$ 607.71 | |||||
| 8 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 9 | A201441 | Shim |
|
$ 8.33 | |||||
| 10 | 2185960 | Clamp, Power Cord |
|
- | |||||
| 11 | 2185965 | Grommet, Compressor (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process |
|
$ 34.91 | |||||
| 13 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 85.76 | |||||
| 14 | W11086824 | Wire Assembly, Jumper |
|
$ 122.02 | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 175.00 | |||||
| 16 | WP759113 | Body, Solenoid Valve (Replaces: 759113) |
|
$ 293.73 | |||||
| 17 | W11624931 | Protector, Overload (Replaces: W10783194) |
|
Immediately | $ 56.75 | ||||
| 18 | W10282061 | Shield, Heat |
|
- | |||||
| 19 | 851095 | Tie, Wire |
|
- | |||||
| 20 | W11748341 | Valve, Hot Gas (Replaces: W11575246) |
|
Immediately | $ 91.69 | ||||
| 21 | W10615506 | Tray, Drip |
|
- | |||||
| 22 | W11613295 | Motor, Condenser Fan (Replaces: W10909377) |
|
Immediately | $ 129.31 | ||||
| 23 | W10843121 | Drier (Replaces: W11594492) |
|
Immediately | $ 51.42 | ||||
| 24 | W11748160 | Condenser (Replaces: W11508236) |
|
- | |||||
| 25 | W11539855 | Pump Assembly, Drain (Replaces: W11509485) |
|
Immediately | $ 566.78 | ||||
| 26 | W11456069 | Clamp, Cable (Replaces: 2185788) |
|
Immediately | $ 20.16 | ||||
| 27 | W11756947 | Pad, Foam (Replaces: W11553219) |
|
- | |||||
| 28 | WP2217224 | Device, Start (Replaces: 2217224) |
|
Immediately | $ 94.34 | ||||
| 29 | W10165274 | Screw |
|
$ 12.12 | |||||
| 30 | 2217446 | Base, Unit (Replaces: 2217423) |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 6.80 | ||||
| 32 | W11766555 | Hose, Drain (coiled) (Replaces: W11655536) |
|
Immediately | $ 79.10 | ||||
| 33 | W11233642 | Clip (Replaces: 2223913) |
|
- | |||||
| 34 | WP2262071 | Tie, Cable (Replaces: 2262071) |
|
$ 8.32 | |||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARIB0F329B5B16B5E8AC069D32686D72F8A | 5.75 Oz. (r-134a) |
|
- |
