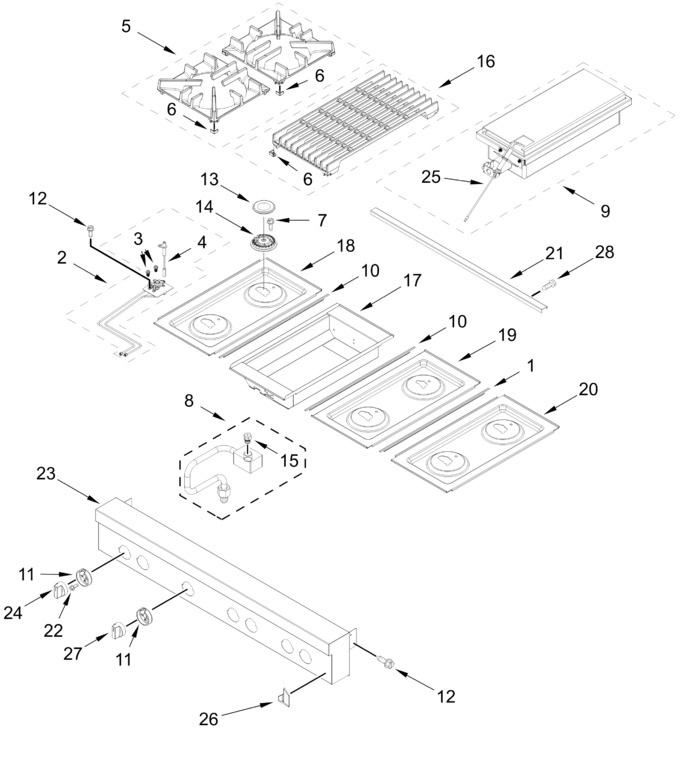

Burner Box And Grill Parts
Cooktop, Burner, And Grill Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271524 | Trim, T-strip (black) |
|
$ 191.11 | |||||
| 2 | W11337062 | Orifice Holder Assembly (Replaces: W10892771) |
|
Immediately | $ 115.43 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (Replaces: W10892422) |
|
Immediately | $ 58.69 | ||||
| 4 | W11580024 | Igniter (Replaces: W11238758) |
|
Immediately | $ 21.29 | ||||
| 5 | W11515370 | Grate Assembly (black, Set Of 2) (Replaces: W11291176) |
|
$ 354.90 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 11.31 | ||||
| 7 | W11766499 | Screw (Replaces: W11323260) |
|
Immediately | $ 11.45 | ||||
| 8 | W11640240 | Grill Orifice Holder Assembly (Replaces: W11419279) |
|
- | |||||
| 9 | W11328568 | Grill Burner Assembly (Replaces: W11120976) |
|
$ 764.05 | |||||
| 10 | W10291193 | Trim, L-strip |
|
- | |||||
| 11 | W11316873 | Bezel (brass) (Replaces: W11090283) |
|
Immediately | $ 44.36 | ||||
| 12 | 7101P42660 | Screw |
|
- | |||||
| 13 | W11319224 | Cap, Burner (black, Set Of 6) (Replaces: W11121392) |
|
Immediately | $ 226.98 | ||||
| 14 | W11319683 | Spreader, Flame (high) (Replaces: W10891987) |
|
Immediately | $ 225.62 | ||||
| 15 | W11419282 | Orifice, Grill (18k) |
|
- | |||||
| 16 | W11515378 | Grill Grate Assembly (Replaces: W11291177) |
|
- | |||||
| 17 | W11328566 | Grill Box Assembly (Replaces: W11174429) |
|
- | |||||
| 18 | W11316700 | Panel, Left Cooktop (Replaces: W11038237) |
|
$ 451.81 | |||||
| 19 | W11316701 | Panel, Center Cooktop (Replaces: W11038241) |
|
$ 451.81 | |||||
| 20 | W11328008 | Panel, Right Cooktop (Replaces: W11038254) |
|
$ 427.73 | |||||
| 21 | W11355761 | Trim, Island |
|
- | |||||
| 22 | W11509770 | Screw (Replaces: W11328357) |
|
$ 12.81 | |||||
| 23 | W11634751 | Panel, Console (Replaces: W10878266) |
|
- | |||||
| 24 | W11785279 | Knob, Burner (stainless) (Replaces: W11560125) |
|
$ 47.24 | |||||
| 25 | W11328571 | Electrode, Grill (Replaces: W11174598) |
|
- | |||||
| 26 | W11700312 | Badge (stainless) (Replaces: W11238658) |
|
Immediately | $ 104.89 | ||||
| 27 | W11791685 | Knob, Grill (stainless) (Replaces: W11560134) |
|
- | |||||
| 28 | 7101P33860 | Screw |
|
- | |||||
| W11319673 | Spreader, Flame (low) (Replaces: W10892022) |
|
Immediately | $ 206.51 | |||||
| ARIEE95D82B7825982DB8027AA1FAF6E9DB | (left Front, Right Center Front, Right Front) |
|
- | ||||||
| W10892429 | Orifice, Simmer (2.0k) |
|
$ 89.87 | ||||||
| W11337063 | Orifice Holder Assembly (Replaces: W10892486) |
|
Immediately | $ 115.44 | |||||
| ARI86CC442F7E3B2AFAEE580E427DF61ED9 | (all But Right Center Rear) |
|
- | ||||||
| W11661909 | Orifice, Simmer (2.6k) (Replaces: W10892435) |
|
Immediately | $ 67.52 | |||||
| ARI96BA0D36FA6A631E80C7BFCE86BF12CD | (left Center) |
|
- | ||||||
| W11238756 | Igniter |
|
Immediately | $ 61.16 | |||||
| ARI2DF9F568FCE4D6018097574F1022E13B | (right Center Rear) |
|
- | ||||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear, Right Rear) |
|
- | ||||||
| W11337065 | Orifice Holder Assembly (Replaces: W10892772) |
|
$ 115.86 | ||||||
| W10892440 | Orifice, Main (7.2k) |
|
$ 89.87 |
