New Model Search:

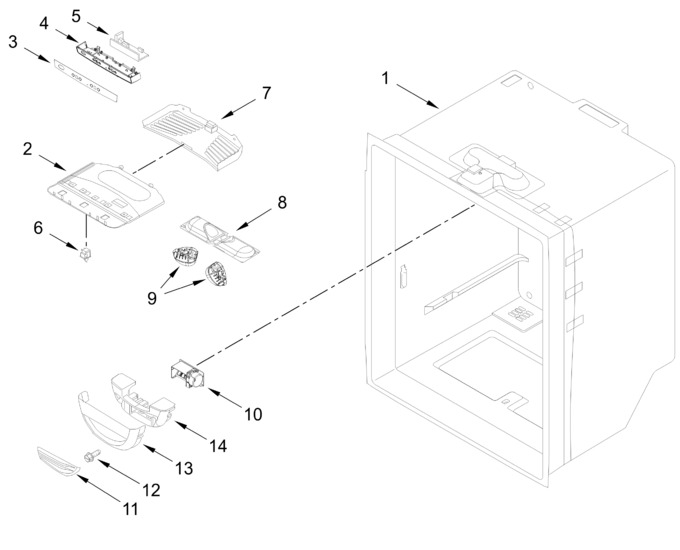

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI5346B929974DE60BBFB10C9B3F85460D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464757 | Module, Light |
|
$ 114.07 | |||||
| 3 | W10593588 | Overlay |
|
$ 34.57 | |||||
| 4 | WPW10464769 | Module, Control (Replaces: W10464769) |
|
Immediately | $ 113.76 | ||||
| 5 | W11524469 | Control, Electronic (Replaces: W11321360) |
|
Immediately | $ 350.44 | ||||
| 6 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 42.63 | |||||
| 10 | WPW10594330 | Damper, Control (Replaces: W10594330) |
|
Immediately | $ 200.49 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 8.55 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: W11657832) |
|
$ 50.15 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11774991 | Harness, Refrigerator Control (includes Thermistor) (Replaces: W11598849) |
|
- |
